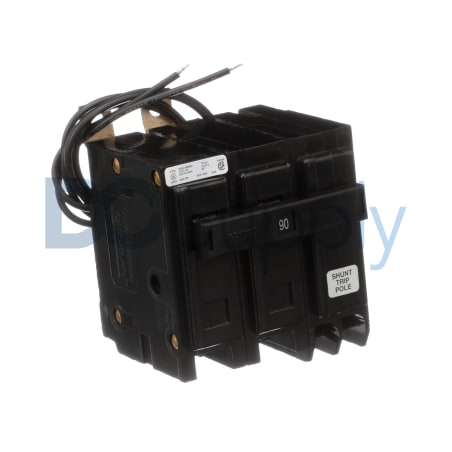

Eaton Cutler-Hammer QuickLag BAB2090S

Product image is representative; revision or series may vary. Contact us to request a specific version.

BAB2090S

|
Need a Specific Revision?

The Eaton Cutler-Hammer BAB2090S is a thermal magnetic circuit breaker designed for reliable electrical protection. With a 90 A rating, it operates effectively at 240 V and ensures safety with a 10 KAIC interrupt rating.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for BAB2090S

ManufacturerEaton Cutler-Hammer
Product TypeThermal Magnetic Circuit Breaker
Product LineQuickLag
Part NumberBAB2090S
UPC786679377420
Number of Poles2 Poles
Rated Current90 A
Rated Voltage240 V
Interrupt Rating10 KAIC
Mounting TypeBolt on Mount
Trip TypeNon-interchangeable
FunctionsLong Time and Instantaneous Trip
ProtectionThermal Magnetic
Phase Type1-Phase
Frame TypeBAB Frame
Request a Repair

The BAB2090S from Eaton Cutler-Hammer is a thermal magnetic circuit breaker optimized for protecting electrical circuits. This unit operates with a rated current of 90 amperes and is rated for a voltage of 240 volts. Constructed with two poles, this breaker is suitable for single-phase applications.

With an interrupt rating of 10 KAIC, the BAB2090S can handle fault currents effectively, minimizing risks during overcurrent conditions. The mounting method is bolt-on, facilitating easy installation in panels. This circuit breaker employs a non-interchangeable trip type, ensuring consistency in performance with defined trip characteristics.

The thermal magnetic protection provides both long-time and instantaneous trip functions, offering adaptability in differing load scenarios. The device is designed based on the BAB frame type, reflecting its structural integrity and compatibility with various setups. This model is identified by UPC 786679377420, making it easy to reference in inventory or procurement systems.
