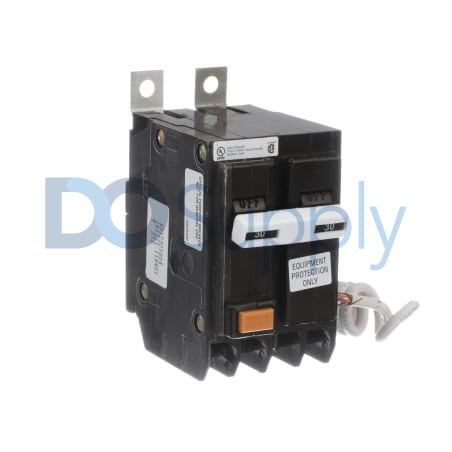

Product image is representative; revision or series may vary. Contact us to request a specific version.
QBGFEP2050
The QBGFEP2050 by Eaton Cutler-Hammer is a dependable ground fault circuit interrupter (GFCI) breaker designed for single-phase applications. This GFCI has a rated current of 50 A and can operate at a voltage of 120/240 VAC, providing effective protection against electrical faults.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for QBGFEP2050
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Ground Fault Circuit Interrupter (GFCI) Breaker |
| Product Line | QuickLag |
| Part Number | QBGFEP2050 |
| UPC | 786679145203 |
| Trip Characteristic | Thermal-Magnetic |
| Electrical Phase | Single-Phase |
| Connection Type | Load Side Lugs |
| Mounting | Bolt-On |
| Poles | 2 poles |
| Rated Current | 50 A |
| Voltage | 120/240 VAC |
| Interrupt Rating | 10 kAIC |
| GF Trip Level | 30 mA |
| Load Wire Range | #14 to #8 AWG (Copper) |
| Compatible Panelboards | QO Series Enclosures |
| Operating Temperature (Max) | 40°C |
| Humidity Rating | 95% RH Non-Condensing |
Part number QBGFEP2050 from Eaton Cutler-Hammer serves as a ground fault circuit interrupter (GFCI) breaker, optimized for high-performance and safety in electrical applications. This model operates on a single-phase system and is rated for a maximum current of 50 A. With an operation voltage range of 120 to 240 VAC, it provides versatility across various installations.
The GFCI is designed with a thermal-magnetic trip characteristic, enhancing its response to faults in the system. As a two-pole breaker, it effectively manages single-phase circuits by providing reliable interruption during ground fault occurrences. For secure installation, it features load side lugs for connectivity, and it is mounted using a bolt-on method, ensuring a stable installation.
A notable feature of the QBGFEP2050 includes its interrupt rating of 10 kAIC, which allows it to safely clear faults up to this level. Additionally, it has a ground fault trip level set at 30 mA, providing sensitive protection against ground faults, thereby enhancing safety for users. It is also compatible with QO series enclosures, making it easy to incorporate into existing electrical panelboards.
In terms of specifications, this GFCI breaker is capable of accommodating a load wire range from #14 to #8 AWG copper, allowing for flexibility in wire sizing based on application needs. The QBGFEP2050 is rated for a maximum operating temperature of 40°C and is designed to function efficiently in environments with humidity levels up to 95% RH in a non-condensing state.
