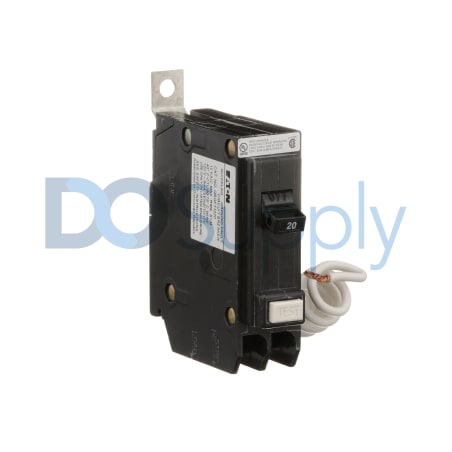

Product image is representative; revision or series may vary. Contact us to request a specific version.
QBGFT1020
The Eaton Cutler-Hammer QBGFT1020 is a single-pole ground fault circuit breaker with a 20 amp rating designed for residential or commercial electrical systems. It provides an interrupt rating of 10 kAIC and features a sensitive trip mechanism of 5 mA.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for QBGFT1020
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Ground fault circuit breaker |
| Product Line | QuickLag |
| Part Number | QBGFT1020 |
| Weight | 0.38 lbs (0.17 kg) |
| UPC | 786680130960 |
| Type of Breaker | QBGF |
| Mounting Method | Bolt-on |
| Number of Poles | Single-pole |
| Amperage Rating | 20 amps |
| Interrupt Rating | 10 kAIC |
| Trip Type | Non-Interchangeable |
| Trip Rating | 5 mA (milliamps) trip sensitivity |
| Voltage Rating | 120/240 volts |
| Special Features | 5 mA (milliamps) Trip Sensitivity |
| Wire Size | AWG #14-10 AWG (Copper); #12-10 AWG (Aluminum) |
| Certifications | UL |
The QBGFT1020 ground fault circuit breaker by Eaton Cutler-Hammer features a single-pole configuration and offers a substantial amperage rating of 20 amps. This model is engineered for voltage applications ranging from 120 to 240 volts. It possesses an interrupt rating of 10 kAIC, which allows it to handle fault conditions effectively.
The trip mechanism on the QBGFT1020 is non-interchangeable and activates with a sensitivity of 5 mA, making it suitable for precise protection in various electrical settings. Users can mount this breaker using a secure bolt-on method to ensure stability and reliability in installation. Additionally, this breaker accommodates a range of wire sizes, specifically AWG #14 to #10 for copper wiring and #12 to #10 for aluminum, providing flexibility for various installation needs.
The ground fault circuit breaker complies with UL standards, giving users assurance of its safety and efficacy in managing electrical faults. Designed to enhance safety in electrical systems, the Eaton Cutler-Hammer QBGFT1020 is an essential component for both residential and commercial applications.
