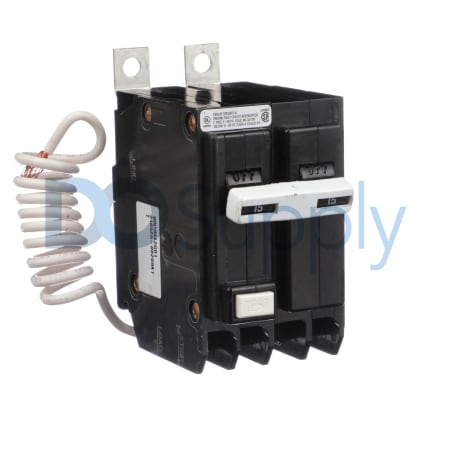

Product image is representative; revision or series may vary. Contact us to request a specific version.
QBGFT2015
The QBGFT2015 circuit breaker by Eaton Cutler-Hammer is designed for single-phase applications, providing essential electrical safety. With a current capacity of 15 A, it is rated for voltages of 120/240 VAC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for QBGFT2015
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Circuit Breaker |
| Product Line | QuickLag |
| Part Number | QBGFT2015 |
| Weight | 1.00 lbs (0.45 kg) |
| UPC | 786676026703 |
| Amperage Rating | 15 A |
| Trip Functions | Long-time, Instantaneous |
| Phase Type | Single-phase |
| Voltage Rating | 120/240 VAC |
| Ground Fault Sensitivity | 5 mA |
| Frequency | 50/60 Hz |
| Number of Poles | 2 Poles |
| Trip Type | Common Trip |
| Trip Technology | Thermal-Magnetic |
| Certification | UL, CSA |
| Connection Type | Bolt-on |
| Interrupt Rating | 10 kAIC |
| Terminal Connection | Load Side Lug |
The Eaton Cutler-Hammer QBGFT2015 is a reliable circuit breaker that caters specifically to single-phase power applications. Capable of handling 15 Amps, this unit operates at voltage ratings of 120/240 VAC, making it suitable for both residential and light commercial environments.
Equipped with two poles, this circuit breaker employs thermal-magnetic technology for trip mechanisms. It features both long-time and instantaneous trip functions, providing necessary protection against overloads and faults. The unit is designed to ensure a common trip across both poles for enhanced safety in electrical circuits.
The interrupt rating of 10 kAIC signifies its robust capacity to manage fault currents without damage. Furthermore, it includes a ground fault sensitivity of 5 mA, which is crucial for protecting against ground faults that could otherwise lead to hazardous electrical conditions.
This circuit breaker operates effectively at frequencies of 50/60 Hz and includes a bolt-on connection type. The terminal connection is provided via load side lugs, allowing for straightforward installation and secure wiring configurations. Certified under UL and CSA standards, the QBGFT2015 ensures compliance with necessary safety protocols for reliable use in field applications.
