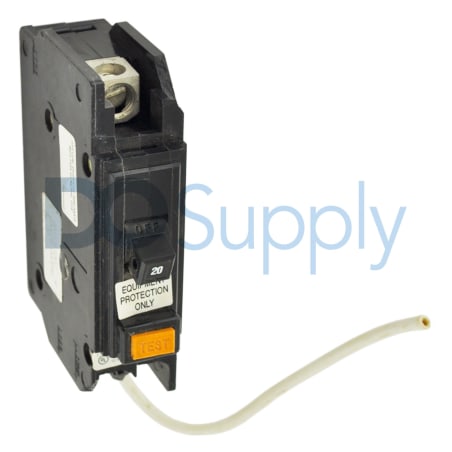

Product image is representative; revision or series may vary. Contact us to request a specific version.
QCGFEP1020
The Eaton Cutler-Hammer QCGFEP1020 is a GFCI circuit breaker designed for enhanced safety. Rated at 20 A, it operates at 120 V and is suited for cable-in/cable-out configurations.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for QCGFEP1020
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | GFCI Circuit Breaker |
| Product Line | QuickLag |
| Part Number | QCGFEP1020 |
| Weight | 0.56 lbs (0.26 kg) |
| UPC | 786679146552 |
| Connection Type | Cable-in/Cable-out |
| Number of Poles | 1 Pole |
| Rated Current | 20 A |
| Interrupt Rating | 10 KAIC |
| Rated Voltage | 120 V |
| Trip Type | Non-Interchangeable |
| Special Features | 30 mA Trip Sensitivity |
| Protection Type | Thermal Magnetic Protection |
| Function | LI - Long-Time and Instantaneous |
| Storage Humidity | 80% (Non-Condensing) |
The QCGFEP1020, part of Eaton Cutler-Hammer's QuickLag series, serves as an effective GFCI circuit breaker. Its construction allows for cable-in and cable-out connections, making installation straightforward. With a rated current of 20 A and an operational voltage of 120 V, it is designed to manage various load requirements.
This device operates with a single pole and incorporates a non-interchangeable trip type. The notable feature includes a trip sensitivity of 30 mA, ensuring prompt disconnection during ground fault conditions. The circuit breaker is rated with an interrupt capacity of 10 KAIC, maintaining integrity during a fault event.
Protection is through a thermal magnetic system, providing a dual-function approach to trip management, handling both overload and short-circuit scenarios effectively. The QCGFEP1020 can withstand a storage humidity of up to 80% without condensation, ensuring reliable performance across various environments.
