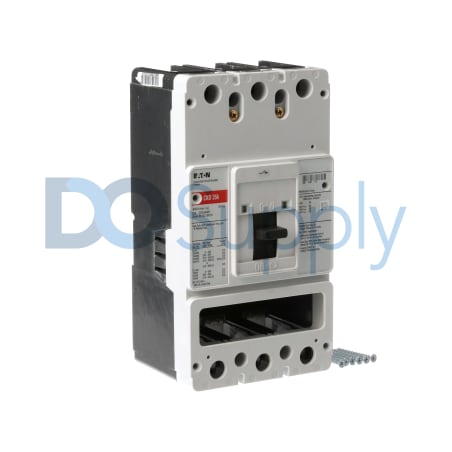

Product image is representative; revision or series may vary. Contact us to request a specific version.
CKD3400F
The CKD3400F from Eaton Cutler-Hammer is a molded case circuit breaker designed for reliable performance in electrical applications. With a rated current of 400 A, it is suitable for high-capacity operations at both AC and DC voltages.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CKD3400F
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | CKD3400F |
| Weight | 9.88 lbs (4.48 kg) |
| UPC | 786679346402 |
| Rated Current | 400 A |
| Rated Voltage (AC) | 600 VAC |
| Rated Voltage (DC) | 250 V DC |
| Trip Type | T186 |
| Frame Size | K Frame |
| Number Of Poles | 3 Poles |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Interrupt Rating at 600 V AC | 25 KAIC |
| Interrupt Rating at 480 V AC | 25 KAIC |
| Interrupt Rating at 240 V AC | 65 KAIC |
The Eaton Cutler-Hammer CKD3400F is a molded case circuit breaker suited for demanding electrical needs. It supports a rated current of 400 A, making it effective for substantial load management. The device functions within a voltage range of 600 VAC and 250 V DC, reflecting its versatility in various applications.
Operating within a frequency range of 50 to 60 Hz, it features a K Frame size and is configured with three poles for comprehensive circuit protection. The T186 trip type ensures reliable operation and quick response in overload situations.
This circuit breaker is designed with impressive interrupt ratings. At 600 V AC and 480 V AC, it possesses an interrupt rating of 25 KAIC, which assures effective protection against high fault currents. At a lower voltage of 240 V AC, the interrupt rating is rated at 65 KAIC, providing a significant safety margin for industrial applications. With its robust specifications, the CKD3400F is a reliable choice for circuit protection.
