EDH3125

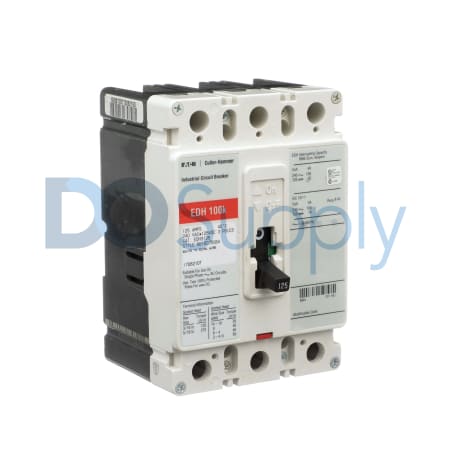

The Eaton Cutler-Hammer EDH3125 is a molded case circuit breaker tailored for versatility in various applications. Rated for 125 amperes, it operates at 240 volts AC and 125 volts DC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EDH3125
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | EDH3125 |
| Weight | 4.00 lbs (1.81 kg) |
| UPC | 786679455340 |
| Frame Type | F Frame |
| Breaker Type | High Interrupting |
| Poles | 3 Poles |
| Amperage Rating | 125 Amperes |
| Voltage Rating | 240 Volts AC, 125 Volts DC |
| Trip Unit | Thermal Magnetic |
| Interrupt Rating | 100 kA at 240 Volts AC |
| Mounting | Bolt-On |
| Connection | Load Side Lugs |
| Certification | UL, CSA |
| Reverse Feed | Yes |
| Frequency | 50/60 Hz |
| Operating Temperature | -20 to 70 degrees Celsius |
The EDH3125 circuit breaker from Eaton Cutler-Hammer is crafted as a molded case circuit breaker, enhancing electrical system safety. This unit is designed with three poles and supports a current rating of 125 amperes. It operates effectively at voltages of 240 volts AC and 125 volts DC, providing reliable circuit protection across various applications.
Equipped with a thermal magnetic trip unit, the EDH3125 ensures effective protection against overload and short circuit conditions. It has a notable interrupt rating of 100 kA at 240 volts AC, allowing it to handle substantial fault currents that may arise in electrical systems. The breaker's F frame type supports its structural integrity while facilitating everyday operability.
For installation, this unit features a convenient bolt-on mounting method, ensuring it can be securely fastened. Connections are made via load side lugs, enhancing its reliability during operation. This breaker is additionally certified by UL and CSA, demonstrating its adherence to established safety standards.
The unit also features reverse feed capabilities and can operate effectively within a frequency range of 50-60 Hz. It functions reliably across a broad temperature range of -20 to 70 degrees Celsius, making it suitable for diverse environments and applications. The UPD for this component is 786679455340, assisting in inventory and identification.
