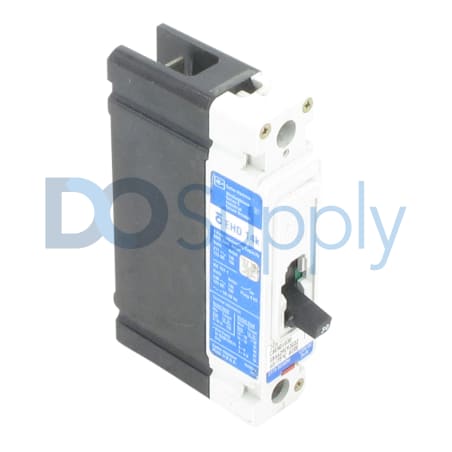

Product image is representative; revision or series may vary. Contact us to request a specific version.
EHD1030
The EHD1030 from Eaton Cutler-Hammer is a molded case circuit breaker designed for load side connections. It operates effectively in 1-phase systems with a thermal magnetic trip mechanism, providing necessary protection for electrical distribution applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EHD1030
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | EHD1030 |
| Weight | 1.63 lbs (0.74 kg) |
| UPC | 786679317341 |
| Trip Type | Thermal Magnetic |
| Mounting Type | Feed-Thru |
| Connection Type | 1 Pole |
| Terminal Type | Load Side Lugs Only |
| Amperage Rating | 30 A |
| Interrupting Rating | 14 kAIC at 480 V |
| Protection | Thermal Magnetic |
| Voltage Rating | 480 VAC, 250 VDC |
| Application | Electrical Distribution |
| Phase | 1-Phase |
The Eaton Cutler-Hammer EHD1030 is a molded case circuit breaker with a feed-thru mounting type suitable for 1-phase electrical systems. This device is characterized by its thermal magnetic trip type that effectively protects against overload conditions. Designed for applications in electrical distribution, it features a single pole and a load-side lug connection, making it easy to install within various setups.
Operating at an amperage rating of 30 A, the EHD1030 is designed to handle significant load demands while safeguarding against electrical faults. The circuit breaker has an interrupting rating of 14 kAIC at a maximum voltage of 480 VAC, providing solid reliability during fault conditions. Additionally, it accommodates a voltage rating of 480 VAC and 250 VDC, making it versatile for different electrical environments. The UPC for this model is 786679317341, useful for inventory and identification purposes.
