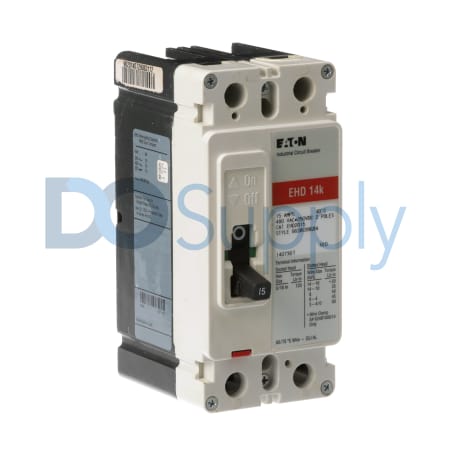

Product image is representative; revision or series may vary. Contact us to request a specific version.
EHD2015
The EHD2015 is a molded case circuit breaker from Eaton Cutler-Hammer's Series C. This model features a rated current of 15 A and operates at 480 VAC. It utilizes a T186 trip type and has a configuration of two poles, making it suitable for single-phase applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EHD2015
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | EHD2015 |
| Weight | 2.69 lbs (1.22 kg) |
| UPC | 786679317419 |
| Trip Type | T186 |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Terminal Type | Load Side |
| Rated Current | 15 A |
| Rated Voltage | 480 VAC |
| Phase Type | 1 Phase |
| Interrupt Rating at 480 V | 14 KAIC |
| Interrupt Rating at 240 VAC | 18 KAIC |
| Number of Poles | 2 Poles |
Eaton Cutler-Hammer's EHD2015 molded case circuit breaker is a high-quality solution for electrical protection. This unit is rated for a current of 15 A and operates efficiently at a voltage of 480 VAC. It features a T186 tripping mechanism, which enhances the ability to protect circuits from overloads.
The breaker is designed to function in single-phase applications, utilizing a two-pole configuration to manage the electrical flow effectively. It supports a frequency range from 50 Hz to 60 Hz, making it adaptable to various operating conditions. The load side terminal configuration simplifies installation, ensuring secure connections within electrical systems.
With interrupt ratings of 14 KAIC at 480 V and 18 KAIC at 240 V, this circuit breaker provides solid fault protection, mitigating the risks associated with short circuits and overload scenarios. The EHD2015 model is compliant with essential performance standards, making it an optimal choice for various industrial and commercial settings.
