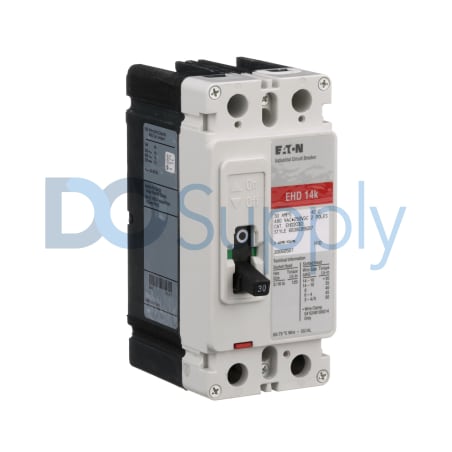

Product image is representative; revision or series may vary. Contact us to request a specific version.
EHD2030
The EHD2030 by Eaton Cutler-Hammer belongs to the Series C Circuit Breakers line. With a 30 amp current rating, this two-pole circuit breaker incorporates fixed thermal and fixed magnetic trip types for dependable protection in various electrical systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EHD2030
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | EHD2030 |
| Weight | 3.00 lbs (1.36 kg) |
| UPC | 786679317440 |
| Frame | F Frame |
| Complete Unit | Yes |
| Trip Type | Fixed Thermal, Fixed Magnetic |
| Poles | 2 Poles |
| Current Rating | 30 Amps |
| Terminals | Load Side |
| Interrupting Rating @ 240V | 18 kAIC |
| Interrupting Rating @ 480V | 14 kAIC |
| Certification | UL |
| Installation Altitude | 1000 meters above sea level |
The Eaton Cutler-Hammer EHD2030 circuit breaker is a complete unit from the Series C offering, designed for effective current management in electrical systems. This specific breaker operates with a 30 amp current capacity and utilizes a two-pole configuration for necessary circuit control.
With fixed thermal and fixed magnetic trip mechanisms, the EHD2030 ensures precise protection against overloads and short circuits, contributing to system safety and reliability. The load side terminals facilitate straightforward installation and connection.
This unit is constructed with an F frame, allowing it to fit into various setups while adhering to space requirements. A significant feature of the EHD2030 is its interrupting ratings, which stand at 18 kAIC for applications at 240 volts and 14 kAIC for those at 480 volts. Such ratings allow this circuit breaker to effectively handle fault conditions without failure.
Additionally, the EHD2030 meets UL certification standards, confirming its compliance with safety regulations. It is applicable for use at altitudes of up to 1000 meters above sea level, making it versatile for different installation environments.
