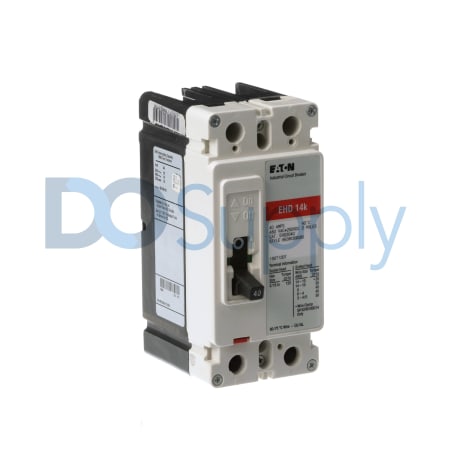

Product image is representative; revision or series may vary. Contact us to request a specific version.
EHD2040
The Eaton Cutler-Hammer EHD2040 is a molded case circuit breaker that features a strong current rating of 40 A. This unit operates effectively at voltages up to 480 V and includes a T186 trip type mechanism for reliable performance.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EHD2040
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | EHD2040 |
| Weight | 3.00 lbs (1.36 kg) |
| UPC | 786679317464 |
| Rated Current | 40 A |
| Trip Type | T186 |
| Terminal Type | Load Side |
| Frame Type | F Frame |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Number of Poles | 2 Poles |
| Interrupt Rating at 240 VAC | 18 KAIC |
| Interrupt Rating at 480 VAC | 14 KAIC |
| Rated Voltage | 480 V |
The EHD2040 from Eaton Cutler-Hammer is a molded case circuit breaker designed for robust electrical systems. It has a rated current capacity of 40 Amps and features an operational voltage of up to 480 Volts. This circuit breaker relies on a T186 trip type, ensuring high reliability during fault conditions.
It accommodates two poles and fits into an F frame design, making it versatile for numerous applications in various environments. The unit operates effectively across a frequency range of 50 Hz to 60 Hz, providing flexibility for different electrical standards.
When it comes to protection against short circuits, the EHD2040 offers impressive interrupt ratings of 18 kAIC at 240 VAC and 14 kAIC at 480 VAC, thus ensuring the safety of circuits it protects. This circuit breaker is equipped with load-side terminal types, promoting straightforward connections during installation, enhancing usability in real-world applications.
