EHD2060

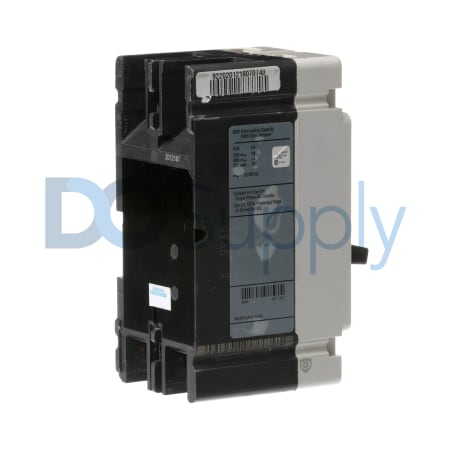

The Eaton Cutler-Hammer EHD2060 is a two-pole molded case circuit breaker designed for effective current management in electrical applications. Rated for continuous current of 60 Amperes and capable of operating with both AC and DC systems, it provides reliable service across diverse conditions.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EHD2060
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | EHD2060 |
| UPC | 786679317488 |
| Operating Frequency | 50 to 60 Hertz |
| AC/DC Voltage Rating | 480 Volts AC / 250 Volts DC |
| Frame Type | F frame |
| Continuous Current Rating | 60 Amperes |
| Ampere Interrupt Capacity | 18 kiloamperes at 240 Volts AC and 14 kiloamperes at 480 Volts AC |
| Load Side Terminal Connection Method | Lugs |
| Trip Unit Design | Fixed thermal magnetic trip unit |
| Line Side Terminal Connection Method | Busbar (no lugs) |
| Compliance Standard | UL-certified |
| Poles Quantity | 2 poles |
| Mounting Type | Panel mount |
The EHD2060 model from Eaton Cutler-Hammer is a molded case circuit breaker tailored to handle various electrical needs. Designed for a continuous current rating of 60 Amperes, this unit functions effectively under both AC and DC voltage ratings, accommodating up to 480 Volts AC and 250 Volts DC.
This circuit breaker is characterized by its two-pole configuration, set in an F frame type, making it suitable for numerous panel mount applications. Users can expect the EHD2060 to operate within a frequency range of 50 to 60 Hertz, providing flexibility for different operational scenarios.
The device offers robust protection with an interrupt capacity of 18 kiloamperes at 240 Volts AC and 14 kiloamperes at 480 Volts AC, which safeguards against potential short circuits. Load side connections are made using lugs, while the line side utilizes a busbar connection method without lugs, ensuring secure and efficient installation. The fixed thermal magnetic trip unit design adds another level of reliability, engaging in case of overload conditions. Also, this model meets UL certification standards, ensuring compliance with safety requirements.
