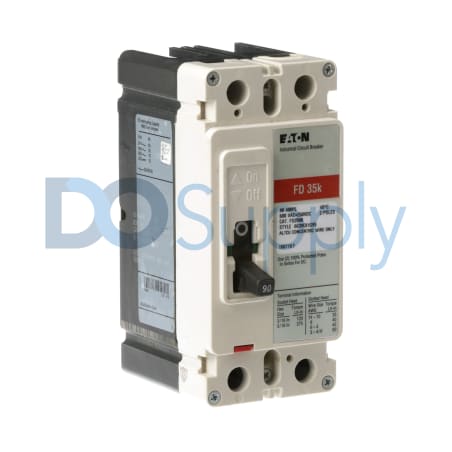

Product image is representative; revision or series may vary. Contact us to request a specific version.
FD2090
The Eaton Cutler-Hammer FD2090 is a molded case circuit breaker capable of handling a rated current of 90 A. It operates at a rated voltage of 600 VAC for alternating current and 250 VDC for direct current applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for FD2090
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | FD2090 |
| Weight | 3.31 lbs (1.50 kg) |
| UPC | 786679312292 |
| Rated Current | 90 A |
| Rated Voltage (AC) | 600 VAC |
| Rated Voltage (DC) | 250 VDC |
| Trip Type | T186 |
| Frame Type | Frame F |
| Min. Frequency | 50 Hz |
| Max. Frequency | 60 Hz |
| Interrupt Rating at 480 VAC | 35 kAIC |
| Interrupt Rating at 240 VAC | 65 KAIC |
| Number of Poles | 2 Poles |
Part number FD2090 by Eaton Cutler-Hammer belongs to the Series C Circuit Breakers and encompasses a molded case circuit breaker design. This model is rated for a current of 90 Amperes, making it suitable for a variety of electrical systems. It operates efficiently with alternating current at a maximum voltage rating of 600 Volts and can handle direct current applications at 250 Volts.
The breaker utilizes a T186 trip mechanism which provides reliable protection against overloads. The FD2090 includes two poles, ensuring versatile functionality in different configurations. It is engineered to manage a frequency range between 50 and 60 Hz which accommodates standard industrial applications.
In terms of safety ratings, the FD2090 boasts an interrupting capacity of 35 kAIC when operating at 480 VAC and a higher rating of 65 KAIC at 240 VAC. These interrupt ratings highlight its ability to protect circuits effectively during fault conditions, making it a critical component in reliable electrical system design. The UPC for this product is 786679312292.
