FD3225

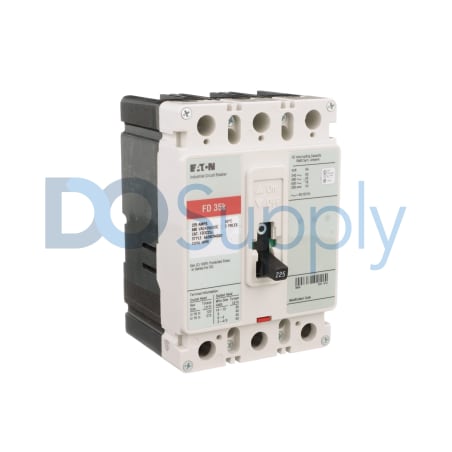

The FD3225 from Eaton Cutler-Hammer is a molded case circuit breaker designed for trip type T186. It operates efficiently in three-phase environments with a current rating of 225 Amps and can handle voltages up to 600 Vac or 250 Vdc.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for FD3225
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | FD3225 |
| Weight | 4.50 lbs (2.04 kg) |
| UPC | 786679015360 |
| Trip Type | T186 |
| Phase | 3 Phase |
| Frame | Frame F |
| Poles | Three poles |
| Current Rating | 225 A |
| Voltage Rating | 600 Vac, 250 Vdc |
| Interrupting Capacity | 65 kAIC at 240 Vac |
| Frequency Rating | 50/60 Hz |
| Terminals | Line and load |
| Mounting Type | Bolt-on / panel mount style |
| Actuator Type | Manual handle actuator |
| Wire Size Range | 4 AWG to 4/0 AWG |
| Certifications | UL Listed |
Eaton Cutler-Hammer offers the FD3225, a molded case circuit breaker known for its reliability in electrical systems. This unit supports three-phase operation, featuring a T186 trip type. With a current capacity rated at 225 Amps, it ensures effective management of electrical loads. The breaker operates at a maximum voltage of 600 Vac and 250 Vdc, making it versatile for various applications.
Constructed with an F frame, the FD3225 includes three poles, allowing for enhanced circuit protection. With an impressive interrupting capacity of 65 kAIC for 240 Vac and 35 kAIC for 480 Vac, it can swiftly respond to fault conditions. This model operates across a frequency range of 50 to 60 Hz.
For installation, the FD3225 employs a bolt-on or panel mount style and features a manual handle actuator for user control. It accommodates a wire size range of 4 AWG to 4/0 AWG, offering flexibility for different wiring setups. The unit is UL Listed, confirming its compliance with safety standards for use in a range of environments.
