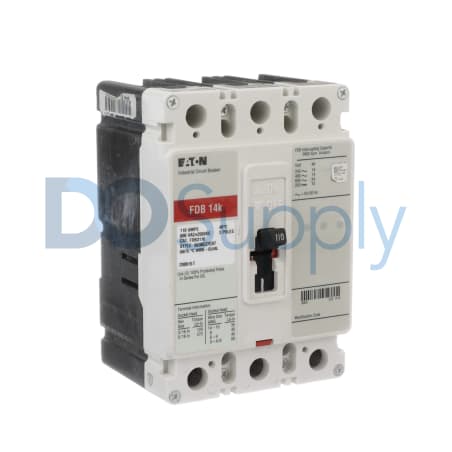

Product image is representative; revision or series may vary. Contact us to request a specific version.
FDB3110
The Eaton Cutler-Hammer FDB3110 is a molded case circuit breaker designed for robust electrical management. This device, effective across 3-phase systems, is rated for 110 Amperes and can function at voltages of up to 600 Volts AC or 250 Volts DC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for FDB3110
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | FDB3110 |
| UPC | 786679312544 |
| Rated Frequency | 50 to 60 Hertz |
| Rated Phase | 3-phase |
| Voltage Rating | 600 Volts AC/250 Volts DC |
| Frame Type | F Frame |
| Number of Poles | 3 Poles |
| Rated Amperage | 110 Amperes |
| Breaker Interrupt Rating | 18 kA at 240 Volts AC; 14 kA at 480/600 Volts AC |
| Load Side Terminal Connection | Lugs |
| Line Side Terminal Connection | Busbar |
| Mounting Method | Panel Mount |
| Trip Unit Type | Thermal Magnetic |
| Certification | UL-listed |
| Trip Functions | LI - Long-Time and Instantaneous |
The FDB3110 model from Eaton Cutler-Hammer is classified as a molded case circuit breaker and is well-suited for industrial applications. Designed to handle a rated amperage of 110 Amperes, this circuit breaker is adaptable for use in 3-phase electrical systems, supporting voltages of up to 600 Volts AC or 250 Volts DC. Its F frame type provides a robust structure for both safety and performance.
With an operational frequency range of 50 to 60 Hertz, the device offers compatibility with different power systems. The breaker is equipped with a thermal magnetic trip unit, ensuring quick reaction to overload and fault conditions. It has an impressive interrupt rating of 18 kiloamperes at 240 Volts AC and 14 kiloamperes at 480 or 600 Volts AC, which enhances its reliability in challenging scenarios.
The FDB3110 is connected via lugs on the load side, while the line side employs busbar connections, allowing for easy integration into existing electrical panels. Designed for straightforward panel mounting, this device is UL-listed, signifying its compliance with established safety standards. The unit also includes long-time and instantaneous trip functions, providing versatile protection against various fault conditions.
