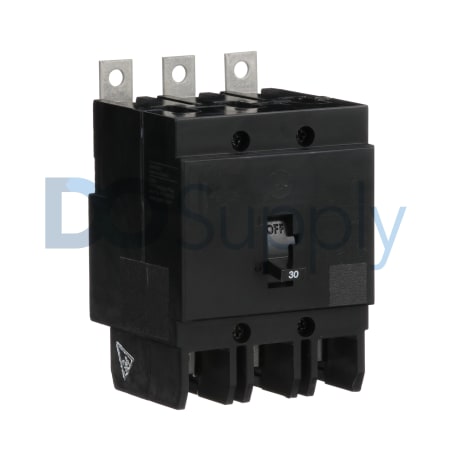

Product image is representative; revision or series may vary. Contact us to request a specific version.
GHB3030
The GHB3030 circuit breaker from Eaton Cutler-Hammer is integral to Series C Circuit Breakers. Designed with a trip type of T186, it provides reliable performance for electrical systems. Its three-pole design supports various loads and features an amperage rating of 30 Amps.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for GHB3030
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | GHB3030 |
| Weight | 1.75 lbs (0.79 kg) |
| UPC | 786679911273 |
| Trip Type | T186 |
| Circuit Breaker Type | GHB |
| Circuit Breaker Frame Type | Complete Breaker |
| Amperage Rating | 30 Amps |
| Voltage Rating | 480Y/277 Volts AC, 125/250 Volts DC |
| Frequency Rating | 50/60 Hertz |
| Interrupt Rating | 14 kAIC at 480Y/277 V AC; 65 kAIC at 240 V AC |
| Number of Poles | Three-Pole |
| Wire Range | AWG #10 – 1/0 (Aluminum or Copper) |
| Certifications | UL Listed |
| Frame | G Frame |
The Eaton Cutler-Hammer GHB3030 functions as a robust circuit breaker within the Series C lineup. With an amperage rating of 30 Amps, this circuit breaker is designed to efficiently manage electrical loads. It operates effectively at voltages of 480Y/277 volts AC and 125/250 volts DC, making it suitable for diverse applications. The device is equipped with a trip type designated as T186, which ensures safe operation during fault conditions.
The GHB3030 features a three-pole configuration to facilitate connection to three-phase systems, enhancing its utility in industrial settings. It supports a frequency rating of 50/60 hertz, catering to various power systems. Additionally, the breaker is rated for interrupt capability with values of 14 kAIC at 480Y/277 V AC and 65 kAIC at 240 V AC. This robust interrupt rating allows for effective protection against short circuits and overload conditions.
Wire connectivity is versatile, accommodating a range from AWG #10 to 1/0 for both aluminum and copper wires, ensuring compatibility with different installation requirements. Designed as a complete breaker, the unit is UL listed, confirming compliance with safety and performance standards. The G frame designation of this breaker further signifies its reliable structure and adaptability for installation in a variety of environments.
