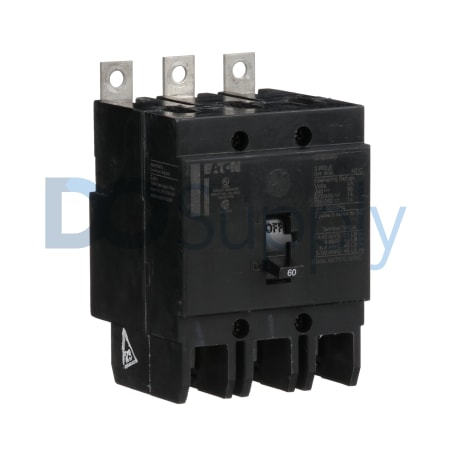

Product image is representative; revision or series may vary. Contact us to request a specific version.
GHB3060
The GHB3060 model from Eaton Cutler-Hammer features a robust design as a molded case circuit breaker. This three-pole device offers an amperage rating of 60 Amps and operates at voltage ratings of 480Y/277 V AC and 125/250 V DC, making it suitable for various applications in electrical systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for GHB3060
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded case circuit breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | GHB3060 |
| Weight | 1.69 lbs (0.77 kg) |
| UPC | 786679048092 |
| Amperage Rating | 60 Amps |
| Voltage Rating | 480Y/277 V AC, 125/250 V DC |
| Frequency Rating | 50/60 Hz |
| Number of Poles | Three-pole |
| Trip Type | T186 |
| Circuit Breaker Type | GHB |
| Circuit Breaker Frame Type | Complete breaker |
| Interrupt Rating | 14 kAIC at 480Y/277 V AC; 65 kAIC at 240 VAC |
| Wire Size | AWG #10 |
| Certifications | UL Listed |
The Eaton Cutler-Hammer GHB3060 is classified as a molded case circuit breaker designed to accommodate substantial electrical demands. This three-pole breaker has an amperage capacity of 60 Amps, allowing it to handle a variety of loads effectively. It operates with voltage ratings of 480Y/277 V AC and also caters to DC applications at 125/250 V.
With frequency compatibility at both 50 Hz and 60 Hz, flexibility is maintained across different installation environments. The circuit breaker features a T186 trip mechanism, ensuring responsive operation during overloads or faults. As part of the GHB type series, this breaker is designed with a complete breaker frame, providing a robust assembly for effective electrical protection.
The GHB3060 has a significant interrupt rating of 14 kAIC when operating at 480Y/277 V AC, which increases to 65 kAIC at 240 VAC, demonstrating its capability to handle high fault currents. This unit accommodates wire sizes up to AWG #10, helping facilitate secure and safe connections. Additionally, it carries UL certification, ensuring compliance with safety standards for quality assurance. The GHB3060 circuit breaker is built for reliability and efficiency in a variety of electrical applications.
