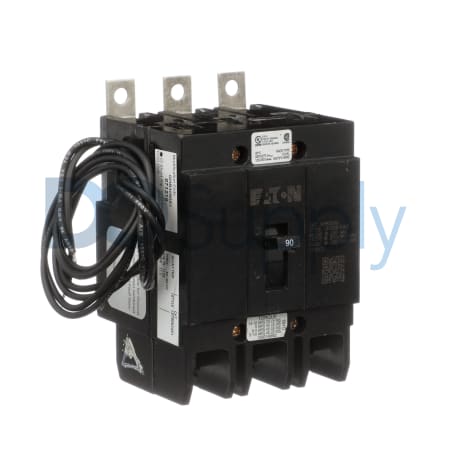

Product image is representative; revision or series may vary. Contact us to request a specific version.
GHB3090S1
The GHB3090S1 is a molded case circuit breaker by Eaton Cutler-Hammer, designed for reliable protection in three-phase systems. With a rated current of 90 A, it operates effectively at voltages of 480Y/277 VAC and 125/250 VDC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for GHB3090S1
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | GHB3090S1 |
| Weight | 1.69 lbs (0.77 kg) |
| UPC | 786679020883 |
| Rated Current | 90 A |
| Voltage Rating (AC) | 480Y/277 VAC |
| Voltage Rating (DC) | 125/250 VDC |
| Number of Poles | 3 Poles |
| Phase Type | 3 Phase |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Trip Type | Fixed Thermal, Fixed Magnetic |
| Mounting Style | Bolt On Mount |
The Eaton Cutler-Hammer GHB3090S1 is a molded case circuit breaker optimized for use in demanding electrical systems. This model is rated for a current of 90 amps, making it suitable for various applications. It functions at an AC voltage rating of 480Y/277 VAC, as well as a DC voltage rating of 125/250 VDC, providing versatility in different environments.
Designated as a three-pole circuit breaker, the GHB3090S1 is effective for three-phase power applications, facilitating balanced loads across circuits. The device operates within a frequency range of 50 to 60 Hz, making it appropriate for standard industrial power systems. It utilizes fixed thermal and fixed magnetic trip mechanisms to provide reliable protection to both the breaker and the connected electrical loads.
Built for practical installation, this circuit breaker weighs 1.7 lbs and follows a bolt-on mounting style, simplifying the process of securing it within a panel. The part numbers' UPC is 786679020883, allowing for easy identification and inventory management. Overall, the GHB3090S1 is engineered to deliver dependable circuit protection and performance in a compact form factor.
