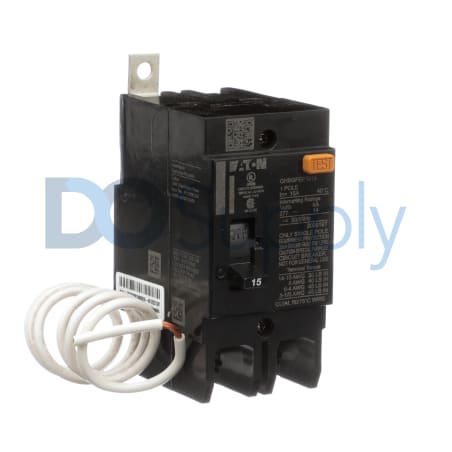

Product image is representative; revision or series may vary. Contact us to request a specific version.
GHBGFEP1015
The Eaton Cutler-Hammer GHBGFEP1015 is a molded case circuit breaker that is part of the Series C lineup. It operates at a rated current of 15 A and a voltage of 480Y/277 VAC, with the capability of handling up to 125/250 VDC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for GHBGFEP1015
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | GHBGFEP1015 |
| UPC | 786679067420 |
| Rated Current | 15 A |
| Rated Voltage AC | 480Y/277 VAC |
| Rated Voltage DC | 125/250 VDC |
| Trip Type | T186 |
| Frame Type | G Frame |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Number of Poles | 1 Pole |
| Interrupt Rating at 277 VAC | 14 KAIC |
| Protection Type | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
The GHBGFEP1015 molded case circuit breaker from Eaton Cutler-Hammer is engineered for dependable performance in various electrical systems. Rated for 15 amperes, it supports an AC voltage rating of 480Y/277, as well as a DC rating of 125/250 volts. This model features a single pole configuration, making it ideal for specific applications where compact solutions are necessary.
Operating within a frequency range of 50 to 60 Hertz, the breaker fits well within standard electrical systems. It includes a thermal magnetic trip type, designated T186, providing effective protection against overloads and short circuit faults. The G frame construction offers robustness needed in both commercial and industrial settings.
The interrupting rating of this circuit breaker is 14 KAIC at 277 VAC, which indicates its ability to safely interrupt fault currents, ensuring circuit integrity during fault conditions. Overall, with its combination of thermal protection and instantaneous trip functions, the GHBGFEP1015 is a reliable choice for various electrical installations.
