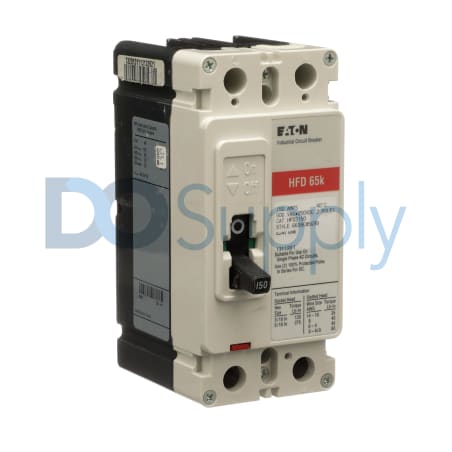

Product image is representative; revision or series may vary. Contact us to request a specific version.
HFD2150
The HFD2150 is a robust molded case circuit breaker from Eaton Cutler-Hammer's Series C. Designed for flexibility, it operates effectively at rated voltages of 600 V AC and 250 V DC, making it an ideal choice for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HFD2150
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | HFD2150 |
| Weight | 3.00 lbs (1.36 kg) |
| UPC | 786679175484 |
| Rated Voltage (AC) | 600 V AC |
| Rated Voltage (DC) | 250 V DC |
| Frame Type | F Frame |
| Min. Frequency | 50 Hz |
| Max. Frequency | 60 Hz |
| Interrupt Rating at 240 VAC | 100 KAIC |
| Interrupt Rating at 480 V AC | 65 KAIC |
| Number of Poles | 2 Poles |
| Terminal Type | Load Side Terminal |
| Rated Current | 150 A |
The Eaton Cutler-Hammer HFD2150 molded case circuit breaker is engineered to manage high electrical loads with confidence. This circuit breaker is rated for operation at 600 V AC and 250 V DC, which allows it to fit a range of electrical systems. The F frame design provides a secure and space-efficient installation option.
This unit features two poles, making it suitable for various dual-phase applications. With a rated current handling capacity of 150 A, it ensures reliable performance for substantial electrical demands. The circuit breaker operates across a frequency spectrum of 50 to 60 Hz, accommodating the needs of many industrial environments.
Critical to its design, the HFD2150 includes impressive interrupt ratings, capable of managing fault currents effectively. It has an interrupt rating of 100 KAIC at 240 VAC and 65 KAIC at 480 VAC, providing assurance that it can withstand high fault conditions without failure. The load-side terminal type enables straightforward wiring connections, facilitating easier integration into existing electrical setups. Overall, the HFD2150 is a powerful and trustworthy option for dependable circuit protection.
