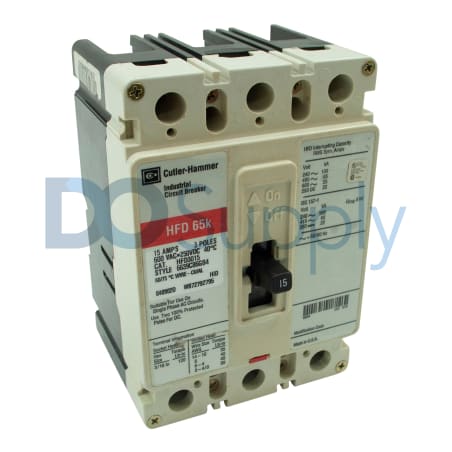

HFD3015
The HFD3015 is a molded case circuit breaker from Eaton Cutler-Hammer's Series C. It operates at a rated current of 15 Amps and can handle 600 Volts AC or 250 Volts DC. This model includes three poles and features a load side terminal for easy connection.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HFD3015
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | HFD3015 |
| Weight | 4.13 lbs (1.87 kg) |
| UPC | 786679175835 |
| Rated Current | 15 A |
| Rated Voltage (AC) | 600 V AC |
| Rated Voltage (DC) | 250 V DC |
| Trip Type | T186 |
| Terminals Type | Load Side terminal |
| Frame Size | F Frame |
| Min. Frequency | 50 Hz |
| Max. Frequency | 60 Hz |
| Number of Poles | 3 Poles |
| Interrupt Rating | 65 kAIC at 480 V AC |
| Interrupt Rating at 240 VAC | 100 KAIC |
The Eaton Cutler-Hammer HFD3015 is a robust molded case circuit breaker tailored for various electrical applications. With an amperage rating set at 15 A, this breaker is adept at managing both AC and DC voltage systems, supporting up to 600 V AC and 250 V DC.
Designed with a trip type T186, the HFD3015 provides reliable circuit protection against overloads and short circuits. It features a load side terminal type, facilitating straightforward installation and secure connections. This circuit breaker is structured with three poles, allowing it to efficiently manage three-phase systems.
The frame size is classified as an F Frame, ensuring compatibility with related mounting configurations. This breaker operates effectively across a frequency spectrum of 50 Hz to 60 Hz, making it versatile for various environments.
In terms of fault protection, the HFD3015 boasts significant interrupting ratings: it can handle up to 65 kAIC at 480 V AC and an impressive 100 kAIC at 240 V AC. Overall, this model is designed for durability and functionality, making it a reliable choice for circuit protection in both industrial and commercial settings.
