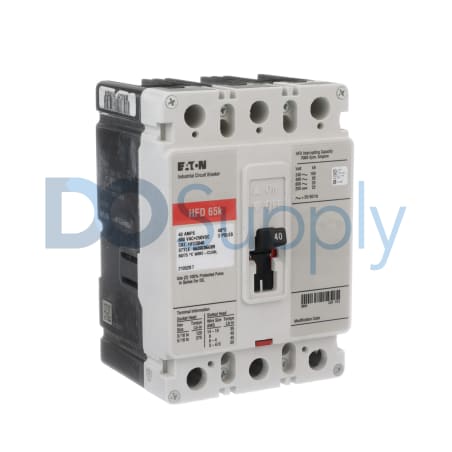

Product image is representative; revision or series may vary. Contact us to request a specific version.
HFD3040
The HFD3040 from Eaton Cutler-Hammer is a molded case circuit breaker designed for reliable electrical protection. It operates at a rated voltage of 600 V AC and 250 V DC, suitable for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HFD3040
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | HFD3040 |
| Weight | 4.31 lbs (1.96 kg) |
| UPC | 786679175842 |
| Rated Current | 40 A |
| Rated Voltage (AC) | 600 V AC |
| Rated Voltage (DC) | 250 V DC |
| Terminals Type | Load Side Terminals |
| Frame Size | Frame F |
| Min. Frequency | 50 Hz |
| Max. Frequency | 60 Hz |
| Number of Poles | 3 Poles |
| Interrupt Rating at 240 VAC | 100 kAIC |
| Interrupt Rating at 480 VAC | 65 kAIC |
The Eaton Cutler-Hammer HFD3040 is a molded case circuit breaker, engineered for superior performance in electrical systems. It boasts a rated current capacity of 40 Amps, addressing a range of applications where reliable current management is essential. The device supports an operational voltage of up to 600 Volts AC, making it well-suited for high-performance environments, while the rated voltage for DC operation is set at 250 Volts.
Designed with load side terminals, the HFD3040 adheres to Frame Size F specifications. This circuit breaker consists of three poles, thereby allowing for effective distribution of power across multiple circuits. Additionally, it operates within a minimum frequency of 50 Hz and a maximum of 60 Hz, accommodating various conditions encountered in standard installations.
Protection against overcurrents is a vital feature of the HFD3040, evident in its interrupt ratings. It offers a substantial interrupt rating of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC. These ratings signify its capacity to safely disconnect under fault conditions, providing peace of mind in operational integrity. The UPC for the HFD3040 is 786679175842, which can facilitate easy identification during inventory processes.
