HFDE308035

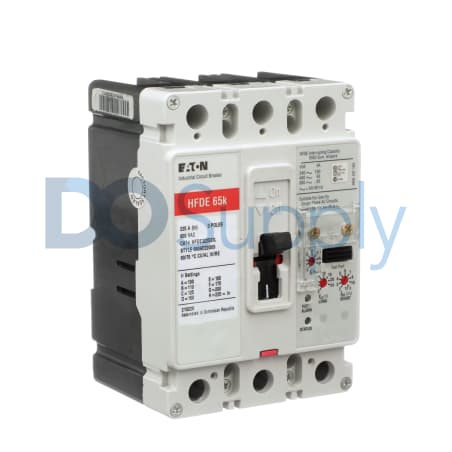

The Eaton Cutler-Hammer HFDE308035 is a molded case circuit breaker recognized for its robust protective capabilities. It is designed to accommodate a voltage rating of 600 Volts AC and 250 Volts DC, supporting various industrial applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HFDE308035
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | HFDE308035 |
| UPC | 786685112602 |
| Type of Frame | F-frame |
| Wire Size | 14 to 1/0 American Wire Gauge (AWG) |
| Breaker Interrupt Rating | 100 kiloamperes at 240 Volts AC; 65 kiloamperes at 480 Volts AC; 25 kiloamperes at 600 Volts AC |
| System Frequency | 50 to 60 Hertz |
| Rated Voltage | 600 Volts AC / 250 Volts DC |
| Ampacity | 80 Amperes |
| Number of Poles | 3 poles |
| Protection Functions | Long-time protection, short-time protection, ground-fault protection, and reverse feed protection |
| Phase Rating | 3-phase |
| Tripping Unit Type | Electronic (LSG 310+) trip unit |
| Type of Terminal Connection | Load side lugs |
| Actuator Type | Handle |
| Mounting Type | Panel mount |
The HFDE308035 by Eaton Cutler-Hammer is a durable molded case circuit breaker designed for reliable performance in industrial settings. With an F-frame designation, it accommodates wire sizes ranging from 14 to 1/0 AWG, offering flexibility during installation. This unit operates at a rated voltage of 600 Volts AC and 250 Volts DC, making it suitable for a broad spectrum of applications.
The circuit breaker supports a continuous current of 80 Amperes and incorporates three poles, ideal for 3-phase systems. It operates effectively within the frequency range of 50 to 60 Hertz. The interruption ratings for this device ensure resilience under fault conditions, rated at 100 kiloamperes for 240 Volts AC, 65 kiloamperes for 480 Volts AC, and 25 kiloamperes for 600 Volts AC.
For safety, it includes electronic trip unit technology (LSG 310+), providing advanced protection features such as long-time, short-time, ground-fault, and reverse feed protection. Load side lug connections facilitate secure and efficient wiring, while the handle actuator ensures straightforward operation. The HFDE308035 is intended for panel mounting, simplifying installation in various setups.
