HLD3600F

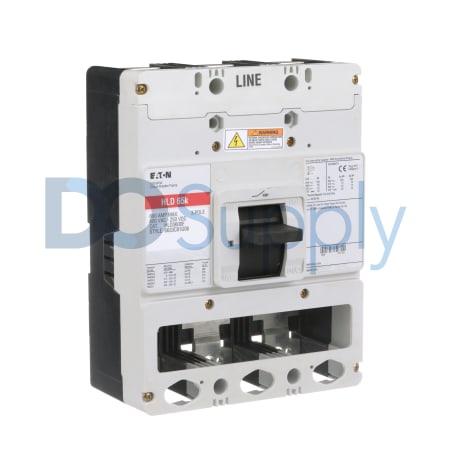

The Eaton Cutler-Hammer HLD3600F is a durable molded case circuit breaker designed for robust applications. This device is configured in a 3-phase layout, suitable for high-demand environments with a rated current capacity of 600 Amps.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HLD3600F
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker, Type HLD |
| Product Line | Series C Circuit Breakers |
| Part Number | HLD3600F |
| Weight | 17.50 lbs (7.94 kg) |
| UPC | 786679138014 |
| Phase | 3 Phase Configuration |
| Terminal Material | Aluminum, Line and Load |
| Mounting Style | Bolt-On |
| Trip Unit Type | Fixed Thermal, Fixed Magnetic |
| Frequency Rating | 50/60 Hz |
| Frame Size | L-Frame |
| Number of Poles | 3 Poles |
| Rated Current | 600 A |
| Rated Voltage (AC) | 600 Vac |
| Rated Voltage (DC) | 250 Vdc |
The HLD3600F from Eaton Cutler-Hammer represents a solid choice in molded case circuit breakers, specifically categorized as Type HLD. It is engineered for 3-phase electrical systems and rated for a maximum current of 600 Amps. With a frame size designated as L-frame, this model is compatible with standard bolt-on mounting methods to ensure secure attachment.
Utilizing aluminum for both line and load terminals, the HLD3600F offers a robust connection for electrical circuits. This breaker is equipped with both fixed thermal and magnetic trip units, providing reliable circuit protection under various fault conditions. Operating within the frequency range of 50/60 Hz, it adheres to prevalent power systems.
The rated voltages support up to 600 Vac for alternating current applications and 250 Vdc for direct current scenarios. When assessing interrupting capacity, this circuit breaker can handle a high fault current of 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, and 35 kAIC at 600 Vac. This high interrupting capacity makes the HLD3600F suitable for demanding industrial environments where such conditions frequently occur.
