Product image is representative; revision or series may vary. Contact us to request a specific version.

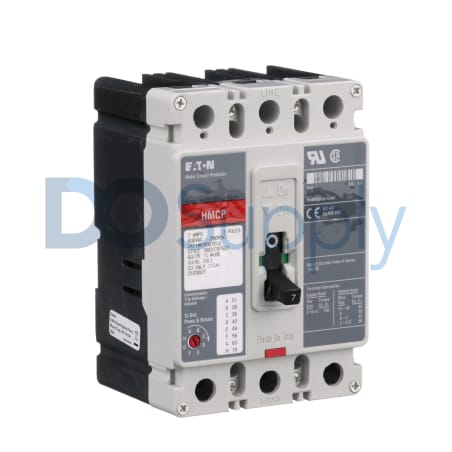

HMCP007C0
The HMCP007C0 from Eaton Cutler-Hammer serves as a reliable motor circuit protector designed to handle protection for motors. Rated at 7 Amps and suitable for applications up to 600 Volts, it operates within a 3-phase system configuration.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HMCP007C0
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Motor Circuit Protector |
| Product Line | Series C Circuit Breakers |
| Part Number | HMCP007C0 |
| Weight | 4.25 lbs (1.93 kg) |
| UPC | 786679150719 |
| Rated Current | 7 A |
| Mounting Type | Bolt-On |
| Voltage Rating | 600 V |
| Connection Type | Line & Load Lugs |
| Trip Type | Magnetic Only |
| Poles | 3 Poles |
| Frequency Rating | 50/60 Hz |
| Approval | UL, CE |
| Phase Type | 3-Phase |
| Contactor Type | Magnetic |
| Application | Motor Protection |
Eaton Cutler-Hammer's HMCP007C0 is a motor circuit protector engineered for high-performance usage in industrial applications. Designed for a rated current of 7 Amps, it operates effectively under a voltage rating of up to 600 V. This device integrates seamlessly into 3-phase systems, providing essential protection for motors.
The HMCP007C0 utilizes magnetic trip mechanisms exclusively, ensuring prompt response during overload conditions. This motor circuit protector is configured with three poles and supports mounting via a bolt-on method for stability and ease of installation. Connected through line and load lugs, it offers straightforward electrical integration.
Frequency ratings of 50/60 Hz make this protector versatile for various electrical environments. Additionally, it is compliant with safety standards including UL and CE, marking its reliability and suitability for use in significant industrial applications. The magnetic contactor further enhances its effectiveness in motor protection scenarios, safeguarding against potential electrical faults.
