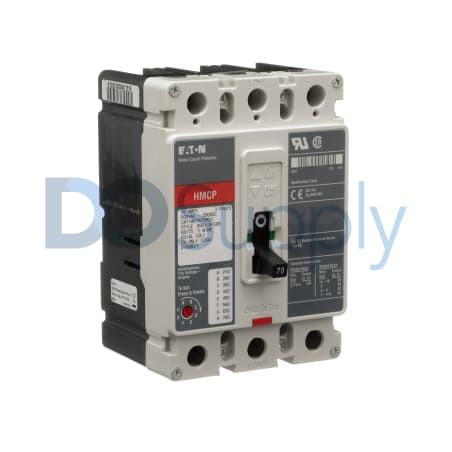

Product image is representative; revision or series may vary. Contact us to request a specific version.
HMCP070M2
The Eaton Cutler-Hammer HMCP070M2 is a molded case circuit breaker designed for operation in motor starter applications. This device is rated for 70 A and operates within a voltage range of 600 VAC and 250 VDC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HMCP070M2
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | HMCP070M2 |
| Weight | 5.00 lbs (2.27 kg) |
| UPC | 786679150757 |
| Magnetic Trip Range | 210–700 A |
| Amperage Rating | 70 A |
| Protection | Thermal Magnetic |
| NEMA Starter Size | Size 2 |
| Voltage Rating | 600 VAC/250 VDC Max |
| Phase | 3 Phase |
| Mounting Type | Panel Mount |
| Poles | 3 Poles |
| Application | Motor Starters |
| Terminal Material | Standard |
| Standards Compliance | UL Listed |
The HMCP070M2 from Eaton Cutler-Hammer is a molded case circuit breaker tailored for motor starter functions. With an amperage rating of 70 A, it effectively supports up to 600 VAC and 250 VDC voltage specifications. This model falls under the Series C Circuit Breakers and features a thermal magnetic protection system that enhances performance and security.
The magnetic trip range for this circuit breaker varies from 210 to 700 A, accommodating responsivity to different electrical demands. Its design consists of three poles, making it suitable for 3-phase applications. Terminal material is of standard quality, and the circuit breaker is intended for panel mounting, simplifying its installation within existing setups.
The HMCP070M2 meets UL listing requirements, assuring compliance with established safety standards. It is an efficient and reliable choice for applications that necessitate precise motor control and protection.
