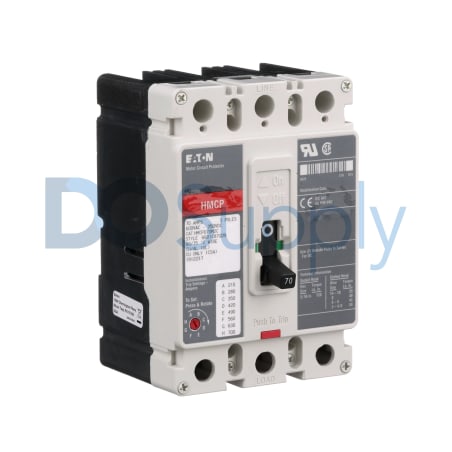

Product image is representative; revision or series may vary. Contact us to request a specific version.
HMCP070M2C
The HMCP070M2C is a molded case circuit breaker from Eaton Cutler-Hammer's Series C. Designed for 3-phase use, it features a frame type designated as F frame and supports a maximum rated voltage of 600 Volts AC with a current rating of 70 Amperes.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HMCP070M2C
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | HMCP070M2C |
| Weight | 4.50 lbs (2.04 kg) |
| UPC | 786679150849 |
| Frame Design | F frame |
| Phase Type | 3-phase |
| Terminal Material | Non-aluminum |
| Poles Configuration | 3 poles |
| Connection Type | Feed-thru connection |
| Breaker Interrupt Rating | 65 kiloamperes at 480 Volts AC |
| Rated Amperage | 70 Amperes |
| Trip Functions | Instantaneous |
| Rated Voltage | 600 Volts AC |
| Compliance Standards | UL-listed and CSA-approved |
| Terminal Connection | Line side and load side lugs |
| Magnetic Trip Range | 210 to 700 Amperes |
| Operating Frequency | 50 to 60 Hertz |
The Eaton Cutler-Hammer HMCP070M2C molded case circuit breaker is engineered for robust performance in electrical systems. It operates within a frame design labeled F frame, meant for 3-phase applications. With a rated voltage of up to 600 Volts AC, it accommodates a current of 70 Amperes, making it suitable for a variety of high-energy tasks.
The product includes three poles in its configuration, allowing effective management of power distribution across connected systems, and utilizes a feed-thru connection type that ensures ease of installation. This circuit breaker has an impressive interrupt rating of 65 kiloamperes when operating at 480 Volts AC, providing the ability to quickly disconnect during fault conditions. For additional protection, the magnetic trip range of this breaker spans from 210 to 700 Amperes, delivering instantaneous tripping capabilities to prevent system overloads.
Earning compliance with both UL and CSA standards, the HMCP070M2C possesses terminal connections made from non-aluminum materials, enhancing reliability for line side and load side configurations. The operating frequency ranges from 50 to 60 Hertz, aligning with common industrial power systems to ensure wide applicability in various environments.
