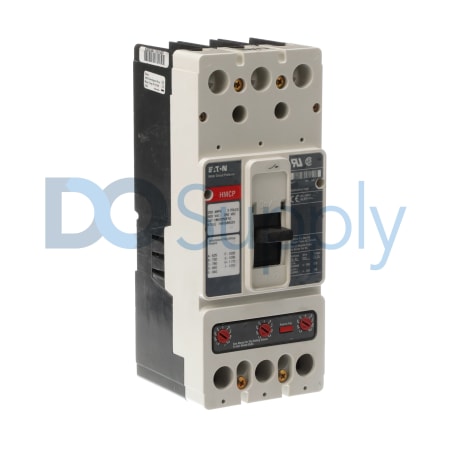

HMCP250F5C
The HMCP250F5C is a motor circuit protector from Eaton Cutler-Hammer's Series C. This device is designed for 3-phase systems, capable of supporting a maximum rated current of 250 A and operates effectively at voltage ratings of up to 600 V AC and 250 V DC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HMCP250F5C
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Motor Circuit Protector |
| Product Line | Series C Circuit Breakers |
| Part Number | HMCP250F5C |
| UPC | 786679151020 |
| Trip Mechanism | Fixed Magnetic Trip Only |
| Magnetic Trip Range | Adjustable ~625-1250 A Range |
| Interrupt Rating | ~35 kAIC at 480 V |
| Terminal Style | Line and Load Lugs |
| Terminal Material | Non-Aluminum Contacts |
| Mounting Type | Panel Mount Feed-Through |
| Rated Current | 250 A Capacity |
| Maximum AC Voltage | 600 V AC Rating |
| Maximum DC Voltage | 250 V DC Rating |
| Phase | 3-Phase Compatible |
| Number of Poles | 3 Poles |
The Eaton Cutler-Hammer HMCP250F5C represents a reliable motor circuit protector in the Series C lineup. Its design is particularly compatible with 3-phase applications, giving it versatility for various motor control setups. The device handles a rated current capacity of 250 amperes, suitable for substantial electrical loads. It operates within a maximum AC voltage of 600 volts and a DC voltage limit of 250 volts, making it adaptable in different environments.
Featuring an adjustable magnetic trip mechanism, the HMCP250F5C allows settings to be fine-tuned between approximately 625 and 1250 amperes. This capability enhances overcurrent protection. It possesses an interrupt rating of around 35 kAIC at 480 volts, contributing significantly to its safety features during fault conditions.
For connection purposes, this motor circuit protector uses line and load lugs, ensuring secure and straightforward wiring. The terminal contacts are specially designed without aluminum, promoting durability and reducing maintenance issues. The mounting is straightforward due to its panel mount feed-through style, allowing for organized setups in control panels. Overall, the HMCP250F5C is engineered for reliability and effectiveness in protecting motors and associated systems.
