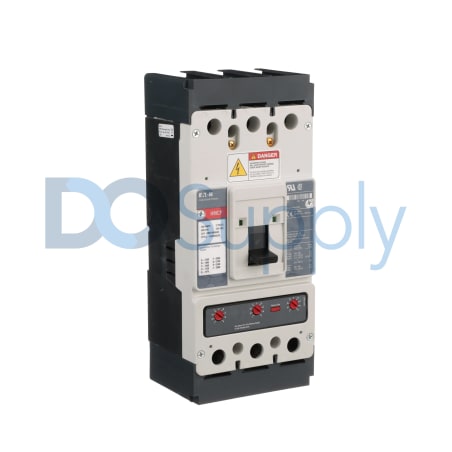

Product image is representative; revision or series may vary. Contact us to request a specific version.
HMCP400W5C
The HMCP400W5C is a motor circuit protector by Eaton Cutler-Hammer, designed for effective motor protection. It accommodates an input voltage up to 600 VAC and ensures a DC voltage operation up to 250 VDC, making it versatile for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HMCP400W5C
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Motor Circuit Protector |
| Product Line | Series C Circuit Breakers |
| Part Number | HMCP400W5C |
| Weight | 11.50 lbs (5.22 kg) |
| UPC | 786679150962 |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 250 VDC |
| Rated Current | 400 A |
| Number of Poles | 3 Poles |
| Phase Type | 3 Phase |
| Terminal Type | Line and Load side lugs |
| Connection Type | Feed-Thru |
| Magnetic Trip Range | 1250 A – 2500 A |
| Relative Humidity | 5 to 95% (Non-Condensing) |
The Eaton Cutler-Hammer HMCP400W5C serves as a reliable motor circuit protector, providing crucial safeguarding for motor operations. Rated for an AC voltage of 600 VAC and a DC voltage of 250 VDC, this protector is suited for various electrical systems.
It supports a current rating of 400 A, ensuring adequate power handling for substantial applications. This model is structured as a three-pole unit, aligning with three-phase power systems. Featuring a magnetic trip range from 1250 A to 2500 A, users can expect responsive protection against overloads.
The HMCP400W5C includes line and load side lugs, allowing for easy installation and maintenance. Its feed-thru connection type further enhances flexibility in system configurations. Designed to operate within a humidity range of 5% to 95% (non-condensing), this motor circuit protector is suitable for various environments. Weighing in at 11.5 lbs, the device is robust yet manageable for installation.
