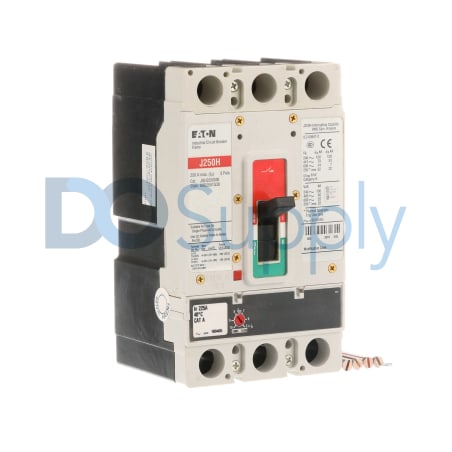

JGH3225FAG
The JGH3225FAG circuit breaker from Eaton Cutler-Hammer is designed for robust performance in electrical systems. It operates effectively at a rated current of 225 amps across 3 poles in three-phase configurations, with both AC and DC voltage ratings.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for JGH3225FAG
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | JGH3225FAG |
| Weight | 6.00 lbs (2.72 kg) |
| UPC | 782113526867 |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 250 VDC |
| Number of Poles | 3 Poles |
| Phase Type | 3 Phase |
| Rated Current | 225 A |
| Interrupting Rating (AIC) at 240 VAC | 100 kAIC |
| Interrupting Rating (AIC) at 480 VAC | 65 kAIC |
| Interrupting Rating (AIC) at 600 VAC | 25 kAIC |
| Interrupting Rating (AIC) at 250 VDC | 22 kAIC |
| Trip Unit Type | Thermal-Magnetic |
| Trip Functions | LI (Long-Time and Instantaneous) |
Eaton Cutler-Hammer's circuit breaker model JGH3225FAG belongs to the Series C line of molded case circuit breakers. This unit is built to handle significant electrical loads. It is rated for a maximum current of 225 A and connects in three-phase, offering versatility for various application types. The voltage ratings for this circuit breaker enable it to operate at 600 VAC for alternating current and 250 VDC for direct current systems.
With an interrupting rating of 100 kAIC at 240 VAC, the JGH3225FAG provides reliable protection against overcurrents. Furthermore, it can safely interrupt currents of 65 kAIC at 480 VAC and 25 kAIC at 600 VAC. For direct current systems, it maintains an interrupting capacity of 22 kAIC at 250 VDC.
This breaker features a thermal-magnetic trip unit, combining both long-time and instantaneous trip functions. The thermal mechanism is designed to respond to continued overcurrent conditions, while the instantaneous trip protects against severe fault currents. Configured with three poles, the JGH3225FAG circuit breaker is essential for safeguarding electrical installations, ensuring reliability and operational security. The product is UPC identified as 782113526867 for easy tracking and inventory management.
