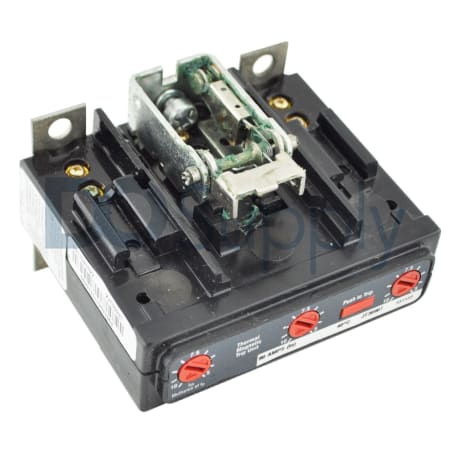

Product image is representative; revision or series may vary. Contact us to request a specific version.
JT3100T
The JT3100T is a molded case circuit breaker trip unit developed by Eaton Cutler-Hammer. This component is engineered to handle a rated current of 100 Amps, suitable for both AC and DC applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for JT3100T
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker Trip Unit |
| Product Line | Series C Circuit Breakers |
| Part Number | JT3100T |
| Weight | 1.38 lbs (0.62 kg) |
| UPC | 786679404119 |
| Rated Current | 100 A |
| Trip Type | T186 |
| Frame Size | Frame J-K |
| Number of Poles | 3 Poles |
| Rated Voltage | 600 V AC |
| Rated Voltage (DC) | 250 V DC |
| Minimum Storage Temperature | 0°C |
| Maximum Storage Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
The Eaton Cutler-Hammer JT3100T serves as a molded case circuit breaker trip unit, designed to ensure optimal performance and safety in electrical systems. With a rated current capacity of 100 Amps, this trip unit is highly suitable for a variety of applications. It is designed to operate with three poles and is classified within the Series C Circuit Breakers. The rated voltage for this unit reaches up to 600 V AC, while also handling a rated voltage of 250 V DC effectively.
The trip type associated with the JT3100T is T186, which provides reliable overcurrent protection. This component is housed in a frame size denoted as J-K, broadening its compatibility with numerous configurations in electrical systems. In terms of environmental requirements, the trip unit has a minimum storage temperature of 0°C and can be stored at a maximum of 40°C. It operates effectively within the same temperature range, transitioning smoothly from storage to operational application.
