JT3175T

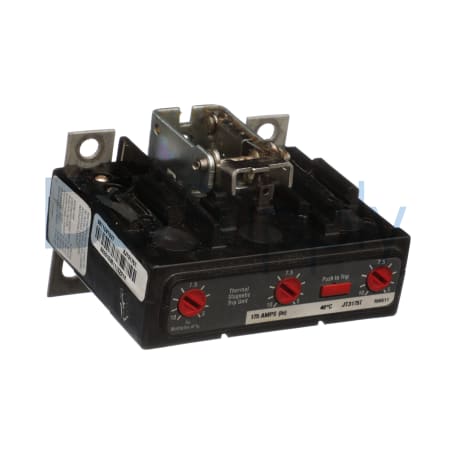

The JT3175T from Eaton Cutler-Hammer is a thermal-magnetic trip unit intended for use with Series C circuit breakers. It supports a continuous current rating of 175 A and operates at a voltage of up to 600 VAC, making it suitable for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for JT3175T
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Thermal-Magnetic Trip Unit |
| Product Line | Series C Circuit Breakers |
| Part Number | JT3175T |
| Weight | 1.31 lbs (0.60 kg) |
| UPC | 786679404140 |
| Rated Continuous Current | 175 A |
| Poles | 3 Poles |
| Rated Voltage | 600 VAC |
| Compatible Breaker Frame | J Frame |
| Trip Unit Mounting Type | Non-Interchangeable |
| Instantaneous Trip Range | 5-10x In |
| Electrical Connection | Bolt-In |
| System Frequency | 50/60 Hz |
| Mounting Style | Internal Breaker-Mounted Trip Unit |
| Ambient Temperature | Calibrated at 40 °C |
The Eaton Cutler-Hammer part number JT3175T is a thermal-magnetic trip unit optimized for use with Series C circuit breakers. It offers a continuous current capacity of 175 A and operates efficiently within a voltage range of up to 600 VAC. This trip unit consists of three poles, ensuring reliable performance in three-phase applications.
Designed specifically for compatibility with J frame breakers, the JT3175T features an internal mounting style that enhances integration with the circuit breaker. The mounting mechanism is non-interchangeable, indicating that this trip unit is specifically designed for its intended application. An instantaneous trip range of 5 to 10 times the rated current ensures quick disconnection during fault conditions, providing enhanced protection for connected circuits.
Electrical connections are made via a bolt-in style, which allows for secure mounting and effective power transmission. This trip unit functions at system frequencies of 50 or 60 Hz, maintaining compatibility with standard electrical supply systems. Calibrated to operate optimally at an ambient temperature of 40 °C, the JT3175T ensures stability and reliability under specified conditions.
