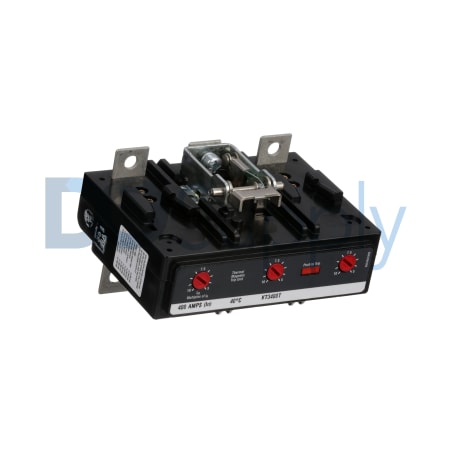

Product image is representative; revision or series may vary. Contact us to request a specific version.
KT3400T
The KT3400T trip unit from Eaton Cutler-Hammer is designed as part of the Series C circuit breakers. It supports a rated current of 400 A with an effective thermal magnetic protection mechanism and features three poles to accommodate diverse electrical systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for KT3400T
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker Trip Unit |
| Product Line | Series C Circuit Breakers |
| Part Number | KT3400T |
| Weight | 1.94 lbs (0.88 kg) |
| UPC | 786679266090 |
| Trip Type | T266 |
| Frame Size | Frame K |
| Number of Poles | 3 Poles |
| Rated Current | 400 A |
| Protection Type | Thermal Magnetic Protection |
| Operating Humidity | 80% max. (Non-Condensing) |
| Storage Humidity | 80% max. (Non-Condensing) |
| Installation Altitude | 1000 MSL |
| Min. Operating Temperature | 0°C |
| Max. Operating Temperature | 40°C |
| Min. Storage Temperature | 0°C |
| Max. Storage Temperature | 40°C |
The Eaton Cutler-Hammer KT3400T serves as a molded case circuit breaker trip unit within the Series C line. This unit is intended for three-pole applications, capable of safely handling a rated current of 400 A. It employs a thermal magnetic protection system that effectively safeguards electrical circuits from overload and short-circuit conditions.
The KT3400T is built to perform in environments where operating humidity does not exceed 80% (non-condensing), ensuring reliability in both operational and storage scenarios with similar humidity constraints. Designed for installation at altitudes reaching up to 1000 meters above sea level (MSL), this trip unit performs efficiently under various geographical conditions.
Temperature resilience is notable; it functions within a range of 0°C to 40°C during operation, and also endures identical temperature limits for storage. These specifications allow for versatile application across different industrial contexts, promoting stability and safety in electrical distribution systems.
