SNT5LP23K

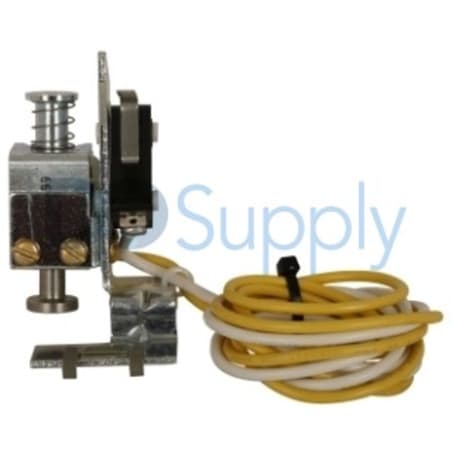

The SNT5LP23K, part of Eaton Cutler-Hammer's Series C Circuit Breakers, serves as a shunt trip for circuit breakers. With a rated current of 1200 A and a maximum current rating of 2500 A, it can efficiently handle demanding applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SNT5LP23K
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Shunt Trip for Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | SNT5LP23K |
| UPC | 786678262727 |
| Rated Current | 1200 A |
| Number of Poles | 3 Poles |
| Frame Type | ND and NG |
| Mounting Type | Left Sided |
| Connection Type | Pigtail Leads |
| Minimum DC Voltage | 48 VDC |
| Maximum DC Voltage | 60 VDC |
| Frame Compatibility | With N Frame (J and K Frame) |
| Maximum Current Rating | 2500 A |
| Maximum AC Voltage Rating | 690 VAC |
| Protection Options | Residual Ground Fault and 30 mA Earth Leakage Protection |
Eaton Cutler-Hammer’s SNT5LP23K is engineered as a shunt trip mechanism specifically designed for circuit breakers. This component manages a rated current of 1200 Amperes while accommodating a maximum current rating of 2500 Amperes, making it suitable for robust applications requiring high electrical capacity. The device comprises three poles and is particularly designed for left-sided installation.
It is compatible with both ND and NG frame types while also fitting into N Frame models, including J and K Frame variants. Electronic connections are made via pigtail leads, ensuring reliable integration into electrical systems. The SNT5LP23K operates under a minimum direct current voltage of 48 VDC and can handle a maximum of 60 VDC. Additionally, it is rated for maximum alternating current voltage levels of 690 VAC. The device offers essential protection options, including residual ground fault protection and earth leakage detection at 30 mA, enhancing overall safety in electrical installations.
