UVH1LP11K

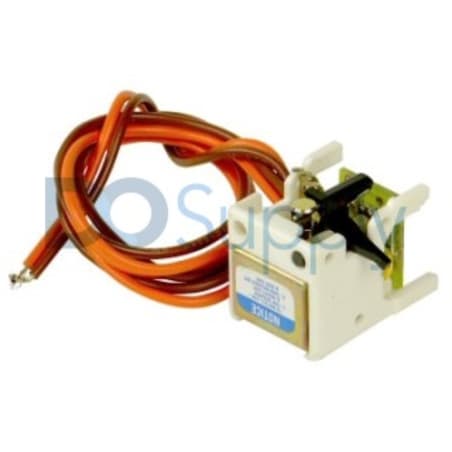

The UVH1LP11K from Eaton Cutler-Hammer is an under voltage release device designed for use in Series C circuit breakers. With a control voltage range of 208 to 240 volts AC, this unit is suitable for multiple applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for UVH1LP11K
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Under Voltage Release (UVR) |
| Product Line | Series C Circuit Breakers |
| Part Number | UVH1LP11K |
| UPC | 786679552926 |
| Control Voltage Range | 208–240 Volts AC |
| Mounting Type | Field Mount (Left Pole) |
| Compatible Frames | F-Frame (FDB, FD, HFD, FDC, E2F, E2FM) |
| Frequency | 50/60 Hz |
| Certifications | UL 1066, UL 489, ANSI C37 |
| Connection | Pigtail Lead |
| Power Consumption | Approx 5 VA |
| Max Contact Opening Time | 10 milliseconds after initial separation |
| Electrical Endurance | 6000 electrical operations + 4000 mechanical operations |
The Eaton Cutler-Hammer UVH1LP11K is specified as an under voltage release (UVR) unit, essential for protecting equipment in electrical systems. Operating within a control voltage range of 208 to 240 Volts AC, it is designed to function seamlessly across various applications. This model is mounted in the field on the left pole, allowing for straightforward installation in compatible frames, specifically the F-Frame types, which include FDB, FD, HFD, FDC, E2F, and E2FM.
The maintenance of operational integrity is enhanced by the unit's approval under UL 1066, UL 489, and ANSI C37 standards. This provides assurance of its safety and dependability. Power consumption is estimated at approximately 5 VA, making it efficient in its electrical use. In terms of performance, the maximum contact opening time is measured at just 10 milliseconds following the initial separation, ensuring rapid response in under voltage situations.
The UVH1LP11K is designed to endure numerous electrical and mechanical operations, boasting a rating of up to 6000 electrical cycles and 4000 mechanical cycles. This highlights its robustness and ability to withstand rigorous operational demands, making it an invaluable component in applications requiring reliable under voltage protection.
