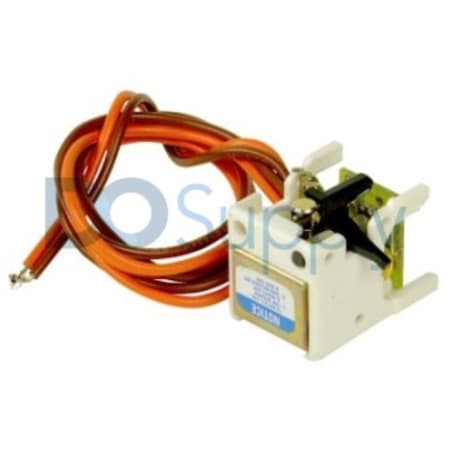

Product image is representative; revision or series may vary. Contact us to request a specific version.
UVH1RP03K
The UVH1RP03K from Eaton Cutler-Hammer is an undervoltage release device used in conjunction with Series C Circuit Breakers. This component is rated for a control voltage of 24 VAC and supports a rated current of 225 A, designed for reliable electromagnetic operation.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for UVH1RP03K
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Undervoltage Release |
| Product Line | Series C Circuit Breakers |
| Part Number | UVH1RP03K |
| Weight | 0.38 lbs (0.17 kg) |
| UPC | 786679553022 |
| Rated Control Voltage | 24 VAC |
| Mounting Side | Right Pole |
| Voltage Tolerance | 0.1 |
| Control Frequency | 50/60 Hz |
| Lead Configuration | Pigtail Leads |
| Compliance | UL, IEC |
| Operating Principle | Electromagnetic |
| Rated Current | 225 A |
| Lead Termination | Stripped Wire Ends |
| Reset Method | Voltage Restore |
| Insulation Class | Class B |
The UVH1RP03K undervoltage release from Eaton Cutler-Hammer is specifically designed to enhance the functionality of Series C Circuit Breakers. With a rated control voltage of 24 VAC, this unit reliably operates within a rated current of 225 A. The electromagnetic operating principle ensures dependable performance during protection scenarios.
Designed for right pole mounting, the UVH1RP03K has a voltage tolerance of 0.1. It is rated for a control frequency of either 50 or 60 Hz, accommodating varying electrical supply standards. Lead configuration is provided through pigtail leads, allowing straightforward connections during installation. The device includes stripped wire ends for lead termination, facilitating simple integration into electrical systems.
This part meets UL and IEC compliance standards, affirming its reliability for different applications. The method for resetting the device is voltage restore, which means it automatically resets itself once voltage returns. It is classified under insulation class B, indicating its suitability for various working conditions while maintaining proper insulation integrity.
