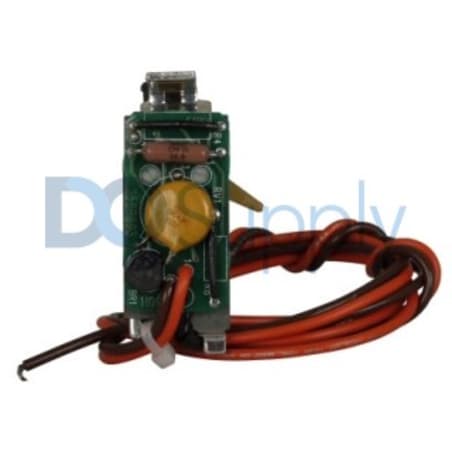

Product image is representative; revision or series may vary. Contact us to request a specific version.
UVH3LP15K
The UVH3LP15K is an undervoltage release mechanism designed specifically for K-frame applications. It features a control voltage rating between 380V AC and 480V AC, offering compatibility with various setups.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for UVH3LP15K
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Undervoltage Release Mechanism |
| Product Line | Series C Circuit Breakers |
| Part Number | UVH3LP15K |
| Weight | 5.00 lbs (2.27 kg) |
| Compatible Frame Type | K-Frame |
| Mounting Position | Left-Pole Mount |
| Control Voltage Rating | 380V AC to 480V AC |
| Connection Type | Pigtail Wire Leads |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 70 °C |
| Minimum Storage Temperature | -30 °C |
| Maximum Storage Temperature | 80 °C |
| Minimum Relative Humidity | 0% (Non-Condensing) |
| Maximum Relative Humidity | 95% (Non-Condensing) |
| Installation Altitude | 2000 m |
The Eaton Cutler-Hammer UVH3LP15K is an undervoltage release mechanism intended for K-frame circuit breakers. This component is rated to handle control voltages from 380V AC to 480V AC, ensuring its applicability in various electrical systems. It is mounted on the left pole and connects through pigtail wire leads, simplifying the installation process.
This product is engineered to function reliably within a temperature range extending from -20 °C up to 70 °C, providing versatility across different operational environments. For storage, it can endure temperatures that reach a minimum of -30 °C and a maximum of 80 °C, offering flexibility based on seasonal changes or storage conditions.
Furthermore, the UVH3LP15K is suitable for environments with a relative humidity range spanning 0% to 95% (non-condensing). It can be effectively used at altitudes of up to 2000 meters, making it appropriate for installations in a variety of locations and conditions. This mechanism plays a vital role in enhancing the safety and reliability of circuit breakers, particularly in situations where undervoltage conditions are a concern.
