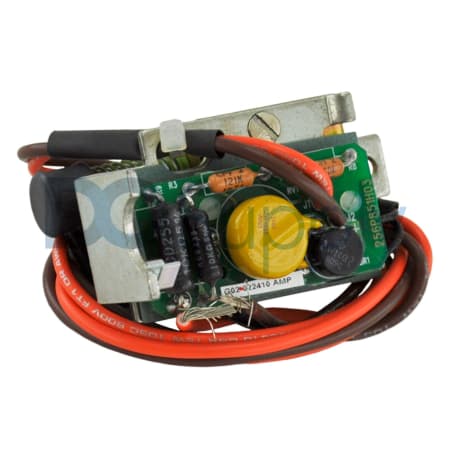

UVH4LP08K
The UVH4LP08K from Eaton Cutler-Hammer is designed as an undervoltage release mechanism for circuit protection. Operating at a voltage range of 110 to 127 VAC, it is ideal for use in single-phase applications where safeguarding against undervoltage conditions is crucial.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for UVH4LP08K
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Undervoltage Release Mechanism |
| Product Line | Series C Circuit Breakers |
| Part Number | UVH4LP08K |
| UPC | 786679575208 |
| Voltage Rating | 110–127 VAC |
| Poles | 1 pole |
| Protection | Undervoltage |
| Standards | UL, CSA |
| Application | Circuit Protection |
| Frequency | 50/60 Hz |
| Phase | Single |
| Installation | Field Installable |
| Operating Mechanism | Electromagnetic Release |
| Suitable For | C Series HMCP L and M-Frame Breakers |
| Mounting Type | Left Hand |
| Connection Type | Pigtail Lead |
The Eaton Cutler-Hammer UVH4LP08K serves as an undervoltage release mechanism intended for circuit protection applications. This part functions within a voltage range of 110 to 127 VAC and is designed with a single pole configuration, enhancing its suitability for various setups. With the ability to protect circuits from undervoltage situations, it is essential for maintaining operational integrity.
The mechanism conforms to both UL and CSA safety standards, affirming its robust design and operational dependability. It operates effectively at frequencies of 50 or 60 Hz while being specifically intended for single-phase setups.
Installation of the UVH4LP08K is straightforward, allowing for field installation, which offers flexibility during setup. It is compatible with Eaton's C Series HMCP L and M-frame circuit breakers, ensuring seamless integration within existing systems. The mechanism operates through an electromagnetic release, which provides reliable functionality during undervoltage conditions. Connectivity is facilitated through a pigtail lead, and the unit supports a left-hand mounting type for correct placement in designated applications.
