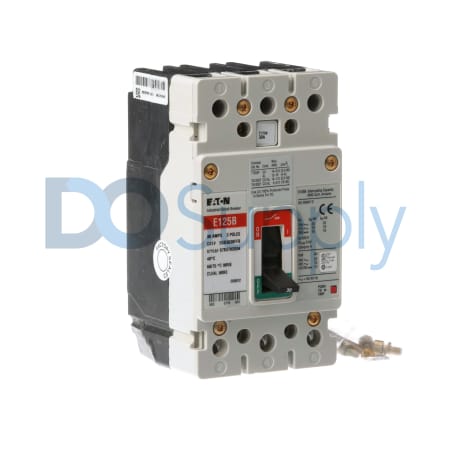

Eaton Cutler-Hammer Series G Circuit Breakers EGB3030FFB

Product image is representative; revision or series may vary. Contact us to request a specific version.

EGB3030FFB

|
Need a Specific Revision?

The EGB3030FFB is a durable molded case circuit breaker from Eaton Cutler-Hammer's Series G, designed for reliable performance in 3-phase electrical systems. It operates at a rated voltage of 480 VAC and supports a current up to 30 A, ensuring adequate protection and functionality for electrical applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for EGB3030FFB

ManufacturerEaton Cutler-Hammer
Product TypeMolded Case Circuit Breaker
Product LineSeries G Circuit Breakers
Part NumberEGB3030FFB
UPC782114876312
Terminal ConnectionLine and Load Side Lug
FunctionsLI - Long Time and Instantaneous Trip
Protection TypeThermal Magnetic
Connection TypeFeed Thru Connection
Frame TypeEG Frame
Phase Type3-Phase
Number of Poles3 Poles
Rated Voltage480 VAC
Rated Current30 A
Interrupt Rating at 480 VAC18 KAIC
Request a Repair

The Eaton Cutler-Hammer EGB3030FFB is engineered as a molded case circuit breaker within the Series G line. It is suitable for integration into 3-phase systems, rated for voltages up to 480 VAC. This breaker can handle a maximum current of 30 A, making it an effective choice for various industrial applications.

Designed with an EG frame type, the EGB3030FFB includes connections for both line and load side lugs. These features ensure secure and reliable connections. The circuit breaker operates using a feed-thru configuration, adding to its flexibility in installations.

This model offers both long-time and instantaneous trip capabilities through its thermal magnetic protection type. It effectively safeguards electrical systems against potential overloads and short circuit conditions. With a robust interrupt rating of 18 KAIC at the operating voltage of 480 VAC, it provides additional safety during fault scenarios. Overall, the EGB3030FFB is built for durability and reliability in demanding environments.
