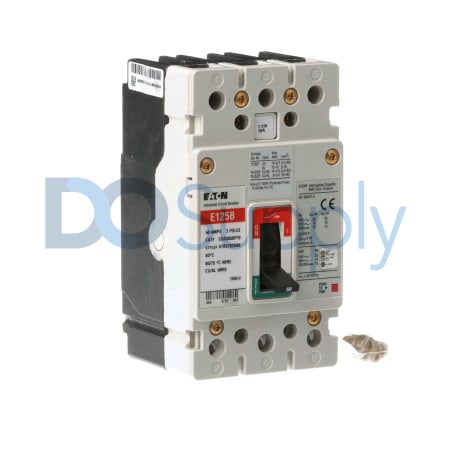

Eaton Cutler-Hammer Series G Circuit Breakers EGB3050FFB

Product image is representative; revision or series may vary. Contact us to request a specific version.

EGB3050FFB

|
Need a Specific Revision?

The Eaton Cutler-Hammer EGB3050FFB is a molded case circuit breaker suitable for various applications. With a rated current of 50 A and capable of handling voltages up to 600Y/347 VAC, this breaker ensures effective performance in electrical systems.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for EGB3050FFB

ManufacturerEaton Cutler-Hammer
Product TypeMolded Case Circuit Breaker
Product LineSeries G Circuit Breakers
Part NumberEGB3050FFB
UPC786685381640
Rated Current50 A
Rated Voltage600Y/347 VAC
Terminal TypeBolt-On Terminal
Trip TypeT186
Min. Frequency50 Hz
Max. Frequency60 Hz
Interrupt Rating at 480 V18 KAIC
Interrupt Rating at 240 V25 KAIC
Number of Poles3 Poles
Frame TypeEG Frame
Request a Repair

The EGB3050FFB model from Eaton Cutler-Hammer is classified as a molded case circuit breaker, engineered for use in various industrial and commercial applications. It operates effectively with a rated current of 50 Amperes and handles voltages of 600Y/347 VAC, making it suitable for complex electrical environments.

The design includes a bolt-on terminal type for secure electrical connections. This circuit breaker is built with three poles and is categorized under the EG frame type, which provides a robust structure. The trip mechanism utilized here is the T186 type, ensuring reliable operation during overload or fault conditions.

The device operates within a frequency range of 50 Hz to 60 Hz, making it compatible with most standard electrical systems. Additionally, the interrupt ratings of the EGB3050FFB are notable; it can withstand up to 25 KAIC at 240 volts and 18 KAIC at 480 volts. These capabilities ensure effective protection against short-circuit currents, supporting the safety and reliability of the entire system.
