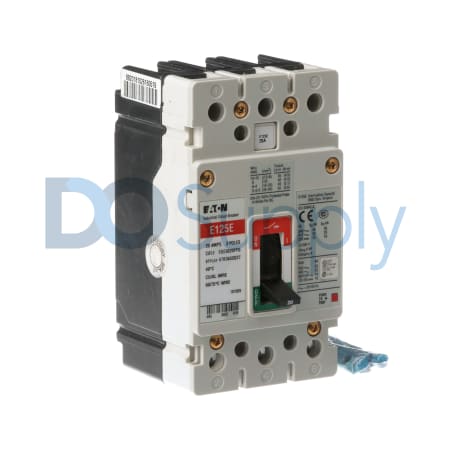

Product image is representative; revision or series may vary. Contact us to request a specific version.
EGE3020FFG
The EGE3020FFG is a molded case circuit breaker from Eaton Cutler-Hammer’s Series G, rated for 20 A at 600Y/347 VAC. This model features three poles and is suitable for three-phase applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EGE3020FFG
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series G Circuit Breakers |
| Part Number | EGE3020FFG |
| Weight | 2.75 lbs (1.25 kg) |
| UPC | 782116131389 |
| Rated Current | 20 A |
| Rated Voltage | 600Y/347 VAC |
| Trip Type | T186 |
| Number of Poles | 3 Poles |
| Phase Type | 3 Phase |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Interrupt Rating at 240 VAC | 35 kAIC |
| Interrupt Rating at 480 VAC | 25 kAIC |
| Interrupt Rating at 600Y/347 VAC | 18 KAIC |
| Frame Type | EG Frame |
| Terminal Type | Line and Load |
The EGE3020FFG molded case circuit breaker is engineered for optimal protection in electrical systems. Manufactured by Eaton Cutler-Hammer under the Series G line, it’s equipped to handle a rated current of 20 A. Suitable for use at a voltage of 600Y/347 VAC, this breaker is designed for three-phase operation with a total of three poles. The design incorporates a T186 trip type, ensuring effective response to fault conditions.
Operating frequencies for this device range from a minimum of 50 Hz to a maximum of 60 Hz, making it versatile for various applications. The EGE3020FFG provides robust interrupt ratings; it can handle 35 kAIC at 240 VAC, 25 kAIC at 480 VAC, and 18 kAIC when used at 600Y/347 VAC. With its EG frame type, the breaker ensures reliable performance and a compact fit for installation.
The terminal configuration allows for secure connections on both line and load sides, enhancing installation efficiency. This circuit breaker is a reliable component for managing and protecting electrical systems from overcurrents.
