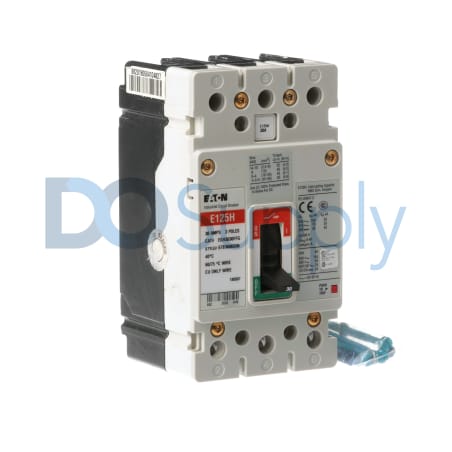

Product image is representative; revision or series may vary. Contact us to request a specific version.
EGH3030FFG
The EGH3030FFG is a molded case circuit breaker from the Eaton Cutler-Hammer Series G. It features three poles and is rated for 30 A, functioning within a voltage range of 600Y/347 Vac, equipped for fixed mounting in various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EGH3030FFG
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series G Circuit Breakers |
| Part Number | EGH3030FFG |
| Weight | 2.69 lbs (1.22 kg) |
| UPC | 782114877517 |
| Poles | 3 Poles |
| Terminals | Line & Load |
| Ampere Rating | 30 A |
| Mounting | Fixed |
| Voltage Rating | 600Y/347 Vac |
| Interrupt Rating at 240 Vac | 100 kAIC |
| Frequency | 50/60 Hz |
| Trip Unit Type | Fixed (Thermal & Magnetic) |
| Standards | UL/ANSI |
| Interrupt Rating at 480 Vac | 65 kAIC |
The EGH3030FFG circuit breaker manufactured by Eaton Cutler-Hammer is classified as a molded case type. This unit features three poles and is designed with line and load terminals for easy wiring. It has an ampere rating set at 30 A, making it suitable for various electrical distribution systems.
Operating under a voltage rating of 600Y/347 Vac, this breaker is designed for fixed mounting, ensuring stability in installations. It functions across a frequency range of 50 Hz to 60 Hz, catering to standard electrical applications. The trip unit incorporates fixed thermal and magnetic mechanisms, providing efficient protection against overloads and short circuits.
For safety and reliability, the unit meets UL and ANSI standards. The EGH3030FFG can handle significant fault currents, as evidenced by its interrupt ratings—100 kAIC at 240 Vac and 65 kAIC at 480 Vac. This capability assures effective operation within demanding environments, making it a sound choice for circuit protection.
