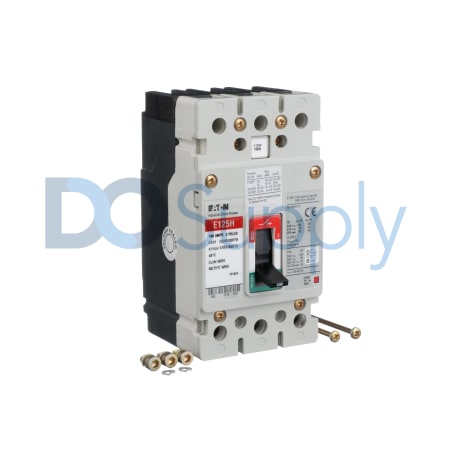

EGH3100FFB
The EGH3100FFB is a molded case circuit breaker from Eaton Cutler-Hammer's Series G. It operates with a 100 A current rating and features a T186 trip type for fixed thermal and magnetic functionalities. Ideal for extensive applications, it ensures effective protection up to 600Y/347 Vac and can handle high interrupting capacities, making it suitable for various industrial needs.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EGH3100FFB
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series G Circuit Breakers |
| Part Number | EGH3100FFB |
| UPC | 786685381947 |
| Trip Type | T186 |
| Function | Fixed thermal, fixed magnetic trip |
| Frame | EG |
| Poles | Three poles |
| Current Rating | 100 A |
| Voltage Rating | 600Y/347 Vac |
| Interrupting Capacity | 65 kAIC at 480 Vac; 35 kAIC at 600Y/347 Vac; 100 kAIC at 240 Vac |
| Frequency Rating | 50/60 Hz |
| Terminals | Bolt-on |
| Handle / Actuator Type | Toggle (manual ON/OFF) |
| Ambient Operating Temperature | 40 °C |
| Operating Temp Range | −20 °C to +70 °C |
| Certifications | UL Listed; IEC Rated; CSA Certified |
The EGH3100FFB from Eaton Cutler-Hammer is categorized as a molded case circuit breaker, a type specifically designed to protect electrical circuits. It is engineered with a trip type known as T186, which features both fixed thermal and fixed magnetic trip functions for reliable operation. This unit is configured with three poles and supports a current rating of 100 A, operating effectively under a voltage rating of 600Y/347 Vac.
Notably, the circuit breaker exhibits considerable interrupting capabilities, rated at 65 kAIC for 480 Vac, 35 kAIC for 600Y/347 Vac, and an impressive 100 kAIC for 240 Vac. This design ensures it can manage substantial fault currents, thus enhancing system safety. The frame type is designated as EG, and it functions within a frequency range of 50 to 60 Hz.
Connections are made through bolt-on terminals, allowing for secure and straightforward installation. The handle is a toggle type, providing manual ON/OFF control for the circuit. This unit operates optimally in ambient temperatures reaching up to 40 °C, with a broader temperature tolerance of −20 °C to +70 °C. The EGH3100FFB holds several industry certifications, including UL Listing, IEC ratings, and CSA Certification, validating its compliance with safety and performance standards.
