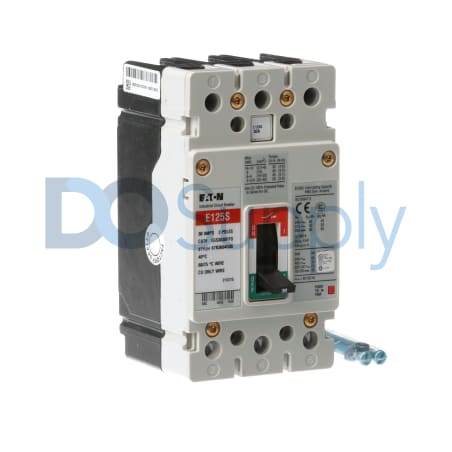

Product image is representative; revision or series may vary. Contact us to request a specific version.
EGS3030FFG
The EGS3030FFG is an Eaton Cutler-Hammer molded case circuit breaker from the Series G line. Capable of handling a rated current of 30 A, it operates at a voltage of 600Y/347 VAC and includes three poles for efficient power distribution.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for EGS3030FFG
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series G Circuit Breakers |
| Part Number | EGS3030FFG |
| Weight | 2.88 lbs (1.30 kg) |
| UPC | 782114877111 |
| Rated Current | 30 A |
| Rated Voltage | 600Y/347 VAC |
| Trip Type | T186 |
| Terminal Type | Line and Load |
| Frame Type | EG Frame |
| Number of Poles | 3 Poles |
| Interrupt Rating at 240 VAC | 85 KAIC |
| Interrupt Rating at 480 VAC | 35 KAIC |
| Min. Frequency | 50 Hz |
| Max. Frequency | 60 Hz |
| Interrupt Rating at 600Y/347 VAC | 22 KAIC |
The Eaton Cutler-Hammer EGS3030FFG circuit breaker is engineered as a molded case type, making it appropriate for various industrial environments. It supports a rated current of 30 A while operating up to a voltage of 600Y/347 VAC. This breaker is configured with three poles, allowing for effective management of electrical distribution.
Its trip type is classified as T186, providing enhanced operational safety by facilitating timely circuit interruption under fault conditions. The interrupt ratings are notable: at 240 VAC, it withstands up to 85 KAIC, while at 480 VAC and 600Y/347 VAC, it manages interrupt ratings of 35 KAIC and 22 KAIC, respectively.
The EGS3030FFG can function within a frequency range from 50 Hz to 60 Hz, accommodating different installation requirements. Its terminal type is designed for both line and load connections, ensuring flexible integration into electrical systems. Built within an EG frame, this circuit breaker provides a sturdy solution for a wide range of applications.
