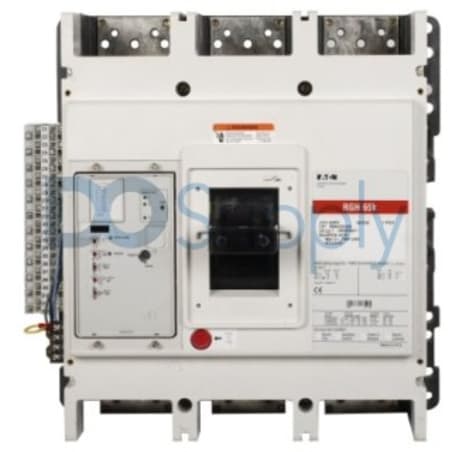

Product image is representative; revision or series may vary. Contact us to request a specific version.
RGH320033E
The Eaton Cutler-Hammer RGH320033E is a durable molded case circuit breaker designed for demanding industrial environments. With a continuous current rating of 2000 A and a voltage rating of 600 VAC, it is suitable for managing significant electrical loads.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for RGH320033E
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series G Circuit Breakers |
| Part Number | RGH320033E |
| Weight | 102.00 lbs (46.27 kg) |
| Frame Type | RG-Frame |
| Number of Poles | 3 Poles |
| Phase Type | 3 Phase |
| Continuous Current Rating | 2000 A |
| Voltage Rating | 600 VAC |
| Interrupting Capacity (AIC at 240V AC) | 125 kAIC |
| Interrupting Capacity (AIC at 480V AC) | 65 kAIC |
| Trip Unit Technology | Electronic Digitrip RMS 310 |
| Trip Functions | LS (Long-Time and Short-Time protection) |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
The RGH320033E model from Eaton Cutler-Hammer represents a high-capacity molded case circuit breaker engineered for three-phase systems. It is built to handle a continuous current of 2000 Amps while operating under a maximum voltage of 600 VAC, making it ideal for significant power management applications. The breaker features an RG-frame type structure and consists of three poles, ensuring versatility for various electrical configurations.
This circuit breaker is designed for robust interrupting capacity, rated at 125 kAIC for 240 VAC and 65 kAIC for 480 VAC. Such ratings are crucial for applications where circuit protection against short circuits and overloads is paramount. The RGH320033E incorporates the Electronic Digitrip RMS 310, which provides both long-time and short-time trip functionalities, enhancing its protective capabilities. The device operates effectively across a frequency range of 50 Hz to 60 Hz, allowing for compatibility in diverse environments.
In summary, the Eaton Cutler-Hammer RGH320033E offers a reliable solution for safeguarding electrical circuits, equipped with advanced technology and ratings that suit demanding applications in industrial settings.
