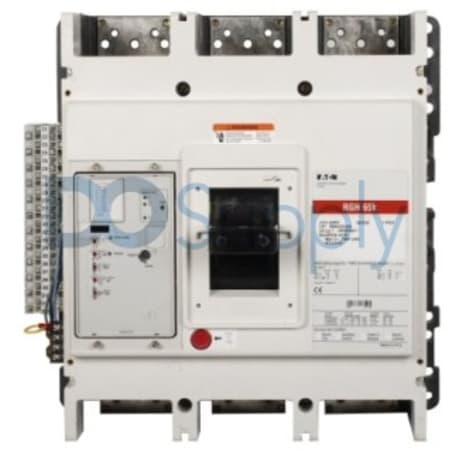

Product image is representative; revision or series may vary. Contact us to request a specific version.
RGH320036E
The RGH320036E electronic molded case circuit breaker from Eaton Cutler-Hammer's Series G is designed to handle demanding electrical applications with a rated current of 2000 A and a maximum operating voltage of 600 V AC. This circuit breaker features comprehensive protection functions and a robust interrupting capacity, ensuring the safety and reliability of powered equipment.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for RGH320036E
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Electronic Molded Case Circuit Breaker |
| Product Line | Series G Circuit Breakers |
| Part Number | RGH320036E |
| UPC | 786685574721 |
| Frame Type | RG-frame |
| Number of Poles | 3 Poles |
| Rated Current | 2000 A |
| Rated Voltage (AC) | 600 V AC |
| Frequency Rating | 50/60 Hz |
| Trip Unit Type | Digitrip 310 RMS |
| Protection Functions | LSIG (Long-time, Short-time, Instantaneous, Ground fault) |
| Mounting Type | Line and load, bolt-on |
| Terminal Type | Without terminals (field-installable options available) |
| Rated Utilization Category | Industrial duty molded case breaker |
| Operating Temperature | -25 °C to +50 °C |
Eaton Cutler-Hammer's RGH320036E is an electronic molded case circuit breaker engineered for robust electrical distribution tasks. This unit belongs to the Series G Circuit Breakers and is built using an RG-frame type. It operates efficiently at a rated current of 2000 A and supports a rated voltage of up to 600 Volts AC. The device features a trip unit known as Digitrip 310 RMS, which offers reliable and precise trip functionalities, including Long-time, Short-time, Instantaneous, and Ground fault protection functions, collectively referred to as LSIG.
This circuit breaker is designed to accommodate a frequency rating of either 50 or 60 Hz, making it versatile for various applications. It is available in a three-pole configuration. The interrupting capacities are robust, with ratings of 125 kAIC at 240 V AC, 65 kAIC at 480 V AC, and 42 kAIC at 600 V AC. This feature ensures that the device can handle overcurrent events safely.
For installation, the RGH320036E supports bolt-on mounting arrangements, accommodating both the line and load sides of the installation. It does not include terminals; however, field-installable options are available, enhancing flexibility in setup. Rated for industrial applications, this circuit breaker is designed to meet rigorous operational demands.
Operating conditions for the RGH320036E range from -25 °C to +50 °C, ensuring reliable performance across these temperatures. Overall, it serves as a high-quality solution for ensuring system safety in industrial electrical applications.
