1755T-PMPS-1700

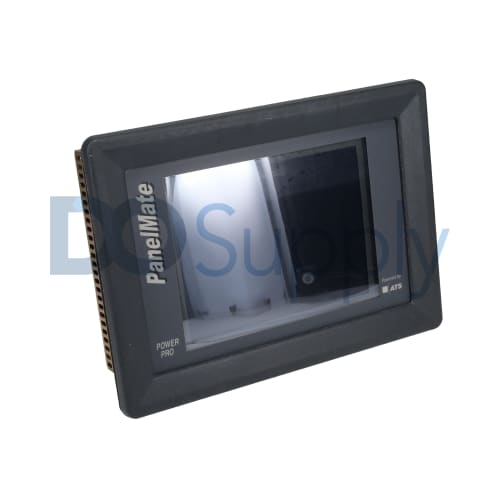

The PanelMate Power Pro Series 1755T-PMPS-1700 terminal is an industrial human-machine interface terminal. It is part of the Eaton Corporation PanelMate Power Pro Series product range. The most important aspects of operator terminal installation are enclosure selection, communication cable selection, shielding grounding and termination, and cable segregation and placement. Eaton recommends enclosures made of cold rolled steel to help protect the 1755T-PMPS-1700 terminal against EMI and to provide good structural support as well as heat dissipation. The maximum ambient temperature for the 1755T-PMPS-1700 terminal is 50 degrees Celsius. The rated heat output for the unit is 78 BTU per hour. Eaton recommends a minimum of 2 inches of free space around the unit for proper air flow. The recommended free space around the unit is 4 inches.

The 1755T-PMPS-1700 terminal comes with a 7.4-inch grayscale LCD screen. Operator input can be performed through the touch-enabled display. The 256-level grayscale display has a resolution of 640 x 480. The unit also includes an electronics module with 3 x 5 cell control selection, a cancel key (on-screen), 4 configurable control buttons (on-screen), and a numeric keypad (on-screen). Online features for the PanelMate Power Pro Series terminals such as the 1755T-PMPS-1700 terminal include alarm reporting and acknowledgement, a Windows-based configuration environment, pixel-based PowerGraphics capabilities, and support for multiple templates including the table, bar, bar trend, line trend, indicator, readout, and variable-sized indicator/bar/readout/display/graphic templates. The 1755T-PMPS-1700 terminal can be used to replace traditional operator stations which consist of individual devices which are hardwired to I/O points. The 1755T-PMPS-1700 terminal connects to PLCs through direct serial or PLC network connections.
