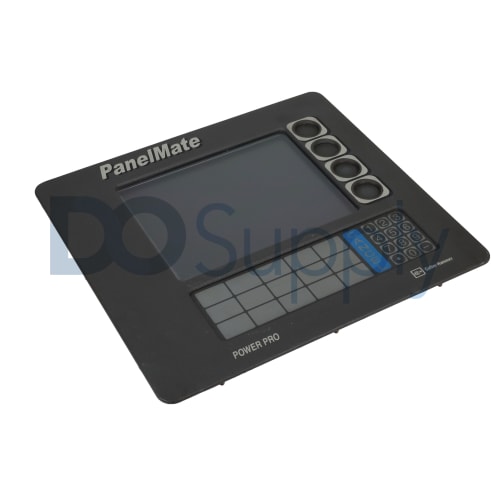

Eaton Cutler-Hammer PanelMate Power Pro 1785K-PMPP-1700

Product image is representative; revision or series may vary. Contact us to request a specific version.

1785K-PMPP-1700

|
Need a Specific Revision?

The Eaton Cutler-Hammer 1785K-PMPP-1700 is an operator terminal designed for various applications. This unit operates on a voltage of 24 VDC and supports two output power configurations based on whether a high-speed interface is installed.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 1785K-PMPP-1700

ManufacturerEaton Cutler-Hammer
Product TypeOperator Terminal
Product LinePanelMate Power Pro
Part Number1785K-PMPP-1700
Weight7.00 lbs (3.18 kg)
Voltage Rating24 VDC
Output Power27W (with high speed interface installed), 23W (without high speed interface installed)
Display Size8.4 inches
Display TypeColor TFT Display
Shock Rating30G (Operating and non-operating)
Vibration Resistance1G at 10-500 Hz
Operating Temperature Range0 to 50°C
Non-operating Temperature-20 to 60°C
Peak Inrush Current5 Amps
Current Rating1.3A (with high speed interface installed), 1.1A (without high speed interface installed)
Serial Port Rate110 to 38400 baud rate (selectable)
Request a Repair

The 1785K-PMPP-1700 represents a compact operator terminal from Eaton Cutler-Hammer's PanelMate Power Pro series. It operates effectively at a voltage rating of 24 VDC, ensuring consistent performance across a range of duties. This terminal can deliver an output power of 27 watts when equipped with a high-speed interface or 23 watts if the high-speed interface is not included.

With an 8.4-inch color TFT display, the unit provides a vibrant interface for users. This screen enhances interaction in industrial settings. Designed to withstand tough conditions, it has a robust shock rating of 30G for both operating and non-operating states. Additionally, for vibrations, it can endure conditions of 1G at frequencies between 10 and 500 Hz, ensuring reliability in dynamic environments.

Operating within a temperature window of 0 to 50°C, the 1785K-PMPP-1700 can adapt to a variety of conditions while retaining functionality. When not in operation, it can handle non-operating temperatures that range from -20 to 60°C. The device is also built to manage a peak inrush current of 5 amps and maintain current ratings of 1.3 amperes when the high-speed interface is installed, dropping to 1.1 amperes without it. Communication versatility is provided through selectable baud rates for the serial port, ranging from 110 to 38400, making it adaptable for various integration scenarios.
