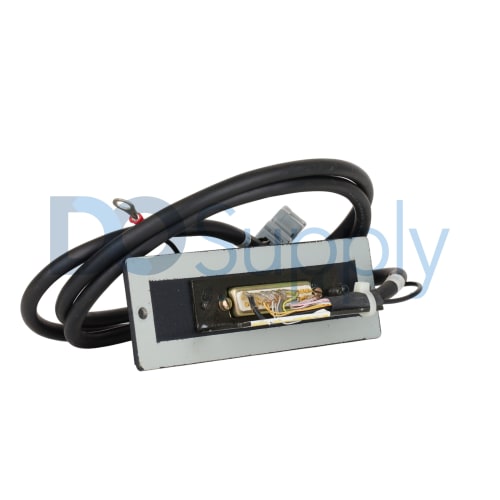

FANUC A02B A02B-0120-C191

Product image is representative; revision or series may vary. Contact us to request a specific version.

A02B-0120-C191

|
Need a Specific Revision?

The FANUC A02B-0120-C191 is a CNC punch panel designed for reliable operation in industrial automated environments. It features an RS-232C serial port for integration with CNC systems and a 15-inch LCD display for visualization.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A02B-0120-C191

ManufacturerFANUC
Product TypeCNC Punch Panel
Product LineA02B
Part NumberA02B-0120-C191
Weight1.31 lbs (0.60 kg)
Interface TypeRS-232C serial port
Cable Length3.28 feet (1 meter)
Ambient Operating Temperature5 to 45°C (in a non-condensing environment)
Storage Temperature-20 to 60°C (in a non-condensing environment)
Vibration Resistance0.5G to 1G (maximum)
Display TypeLiquid crystal display (LCD)
Punch Panel TypeNarrow width type
Keyboard TypeFA Full Keyboard (English)
Operating Frequency50 to 60 Hertz
Recommended Cable Conductor SizeAmerican Wire Gauge (AWG) 28 or 0.08 square millimeters
Request a Repair

The FANUC A02B-0120-C191 CNC punch panel is engineered for efficiency in various industrial settings. It features a liquid crystal display (LCD) measuring 15 inches diagonally. This makes it suitable for visual data representation and control tasks. The punched panel connects through an RS-232C serial interface, allowing for integration with other CNC components easily.

Boasting a cable length of 3.28 feet (1 meter), the device ensures proper placement without excessive strain. Its compact design is classified as a narrow width type, allowing for convenient installation in tight spaces.

Operating temperatures are specified between 5°C and 45°C in non-condensing environments, ensuring effective usability under various conditions. When stored, the unit can withstand temperatures as low as -20°C and up to 60°C. With vibration resistance rating between 0.5G and a maximum of 1G, the punch panel maintains its functionality in environments where movement is present.

The keyboard is designed as an FA full keyboard set up in English, further enhancing user interface capabilities. The specified operating frequency is set between 50 to 60 Hertz. To ensure optimal performance, the recommended wire gauge for the cable conductor is AWG 28, or 0.08 square millimeters, making it adequate for the electrical load.
