FANUC A02B A02B-0281-C081

Product image is representative; revision or series may vary. Contact us to request a specific version.

A02B-0281-C081

|
Need a Specific Revision?

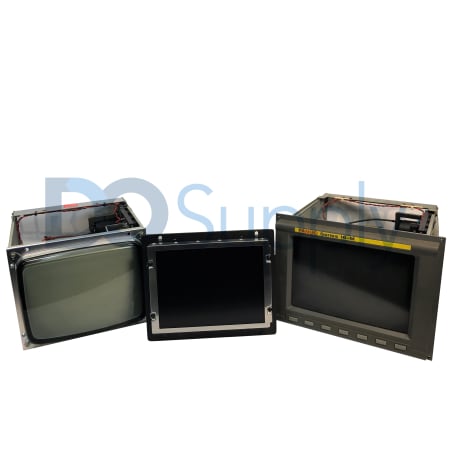

The FANUC A02B-0281-C081 is specifically designed as a color display monitor featuring a 10.4-inch LCD screen. This unit integrates a capacitive touch panel that enhances user interaction through graphical capabilities and offers a resolution of 800 x 600 pixels to ensure clear representation.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A02B-0281-C081

ManufacturerFANUC
Product TypeDisplay Monitor
Product LineA02B
Part NumberA02B-0281-C081
Weight4.75 lbs (2.15 kg)
Display Size10.4" LCD
Display TypeColor LCD with Graphic & Touch Panel
Touch PanelCapacitive Touch Panel
Resolution800 x 600 pixels
Mounting TypePanel Mount
Brightness300 cd/m²
Operating Temperature0°C to 50°C
Input Voltage100-240 VAC
Request a Repair

The A02B-0281-C081 model from FANUC is a panel-mounted display monitor with a generous 10.4-inch screen crafted for a range of industrial applications. This device features a capacitive touch panel, allowing for smooth interaction and precise input. Additionally, the color LCD design is equipped with a resolution of 800 x 600 pixels, which delivers clear and detailed images necessary for monitoring and control tasks.

With a brightness specification of 300 cd/m², this monitor performs well in different lighting conditions. It is constructed to operate within an ambient temperature zone of 0°C to 50°C, ensuring consistent performance in a variety of operating environments. The weight of the unit is approximately 2.15 kilograms, providing a manageable design for panel mounting. For power requirements, the display operates on an input voltage range between 100 and 240 VAC, making it versatile for use with various electrical systems.
